LOX Electro Magnetic Lock 580kg Non Monitored Single Magnetic Lock

Product Code: LEM5700

Are you a tradesperson?

Get access to our best prices



Description

LOX LEM5700 series maglock to suit single door non-monitored.

  • Single magnetic lock.
  • Dual voltage 12V DC @ 500mA, 24V DC @ 260mA.
  • Non-monitored.
  • MOV surge protection.
  • Holding force up to 580kgs.
  • 4 hour fire rating.
  • Satin anodised aluminium housing.
  • Zinc plated electromagnetic body.

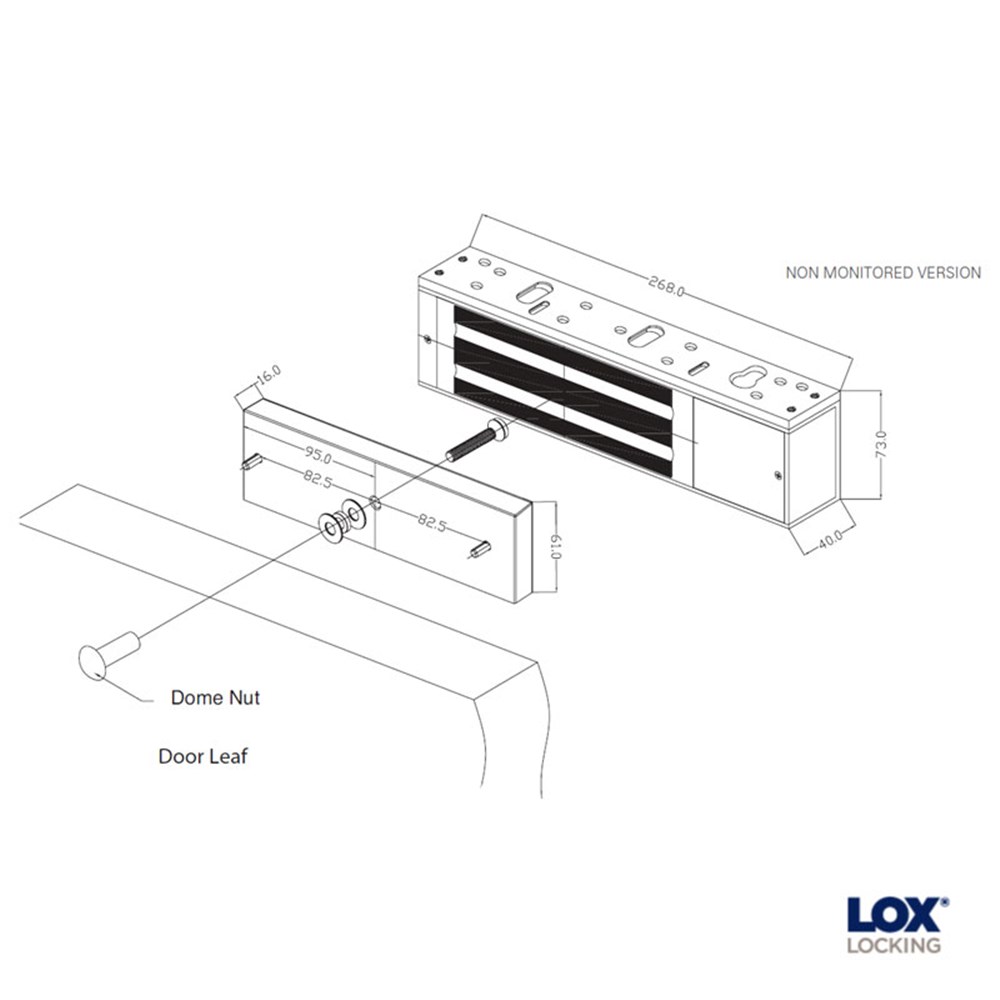

  • Magnet size 268 (L) x 73 (H) x 40 mm (D).
  • Armature plate 190 (L) x 61 (H) x 16 mm (D).
  • Guaranteed no residual magnetism.
  • Monitored versions supplied with anti tamper plate.
Technical Specifications
Brand LOX LOCKING
Current 500 mA @ 12 Vdc, 260 mA @ 24 Vdc
Finish Satin Anodised
Holding Strength in kg 580
Working Voltage 12/24 Vdc
Fire Rated Yes, 4 Hours
Single Or Double Door Maglock? Single
Monitoring Non-Monitored
