LOX Electro Magnetic Lock 580kg Non Monitored Double Magnetic Lock

Product Code: LEM5700D

Are you a tradesperson?

Get access to our best prices



Description

LOX LEM5700 series maglock to suit double door non-monitored.

  • Double magnetic lock.
  • Dual voltage 12V DC @ 1amp, 24V DC @ 520mA.
  • Non-monitored.
  • MOV surge protection.
  • Holding force up to 580kgs per magnet.
  • 4 hour fire rating.
  • Satin anodised aluminium housing.
  • Zinc plated electromagnetic body.

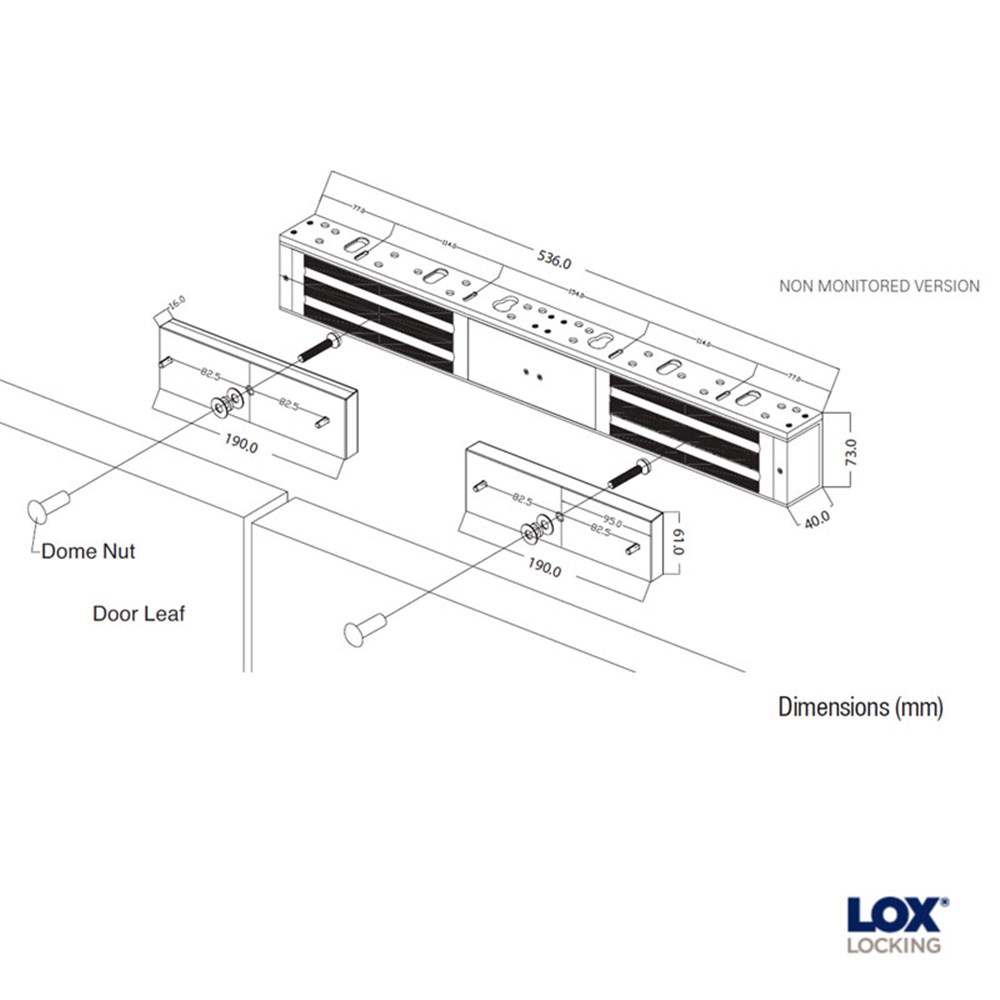

  • Magnet size 535 (L) x 73 (H) x 40 mm (D).
  • Armature plates 190 (L) x 61 (H) x 16 mm (D).
  • Guaranteed no residual magnetism.
  • Monitored versions supplied with anti tamper plate.
Technical Specifications
Brand LOX LOCKING
Current 1 A @ 12 Vdc, 520 mA @ 24 Vdc
Finish Satin Anodised
Holding Strength in kg 580
Working Voltage 12/24 Vdc
Fire Rated Yes, 4 Hours
Single Or Double Door Maglock? Double
Monitoring Non-Monitored
