LOX Electro Magnetic Lock 580kg Monitored Single Magnetic Lock inc. Anti-Tamper Plate

Product Code: LEM5700M

Are you a tradesperson?

Get access to our best prices



Description

LOX LEM5700 series maglock to suit single door monitored.

Monitored versions supplied with anti tamper plate as standard to prevent hostile attacks on dome-nut fixing bolt.

  • Single door monitored magnetic lock.
  • Dual voltage 12V DC @ 500mA, 24V DC @ 260mA.
  • Monitored, door status sensor, lock status sensor.
  • MOV surge protection.
  • Holding force up to 580kgs.
  • 4 hour fire rating.
  • Satin anodised aluminium housing.
  • Zinc plated electromagnetic body.

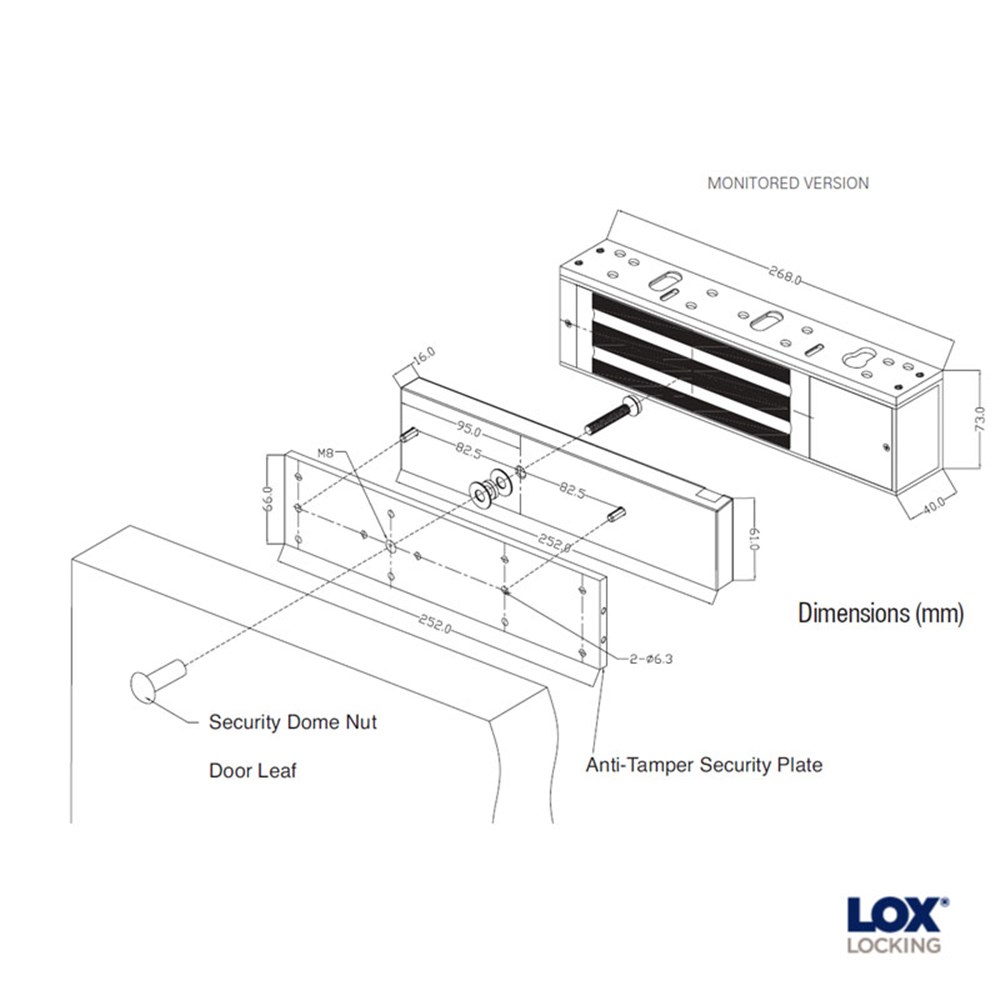

  • Magnet size 268 (L) x 73 (H) x 40 mm (D).
  • Armature plates 190 (L) x 61 (H) x 16 mm (D).
  • Long distance light panel.
  • Guaranteed no residual magnetism.
  • Monitored versions supplied with anti tamper plate.
Technical Specifications
Brand LOX LOCKING
Current 500 mA @ 12 Vdc, 260 mA @ 24 Vdc
Finish Satin Anodised
Holding Strength in kg 580
Working Voltage 12/24 Vdc
Fire Rated Yes, 4 Hours
Single Or Double Door Maglock? Single
Monitoring Monitored
