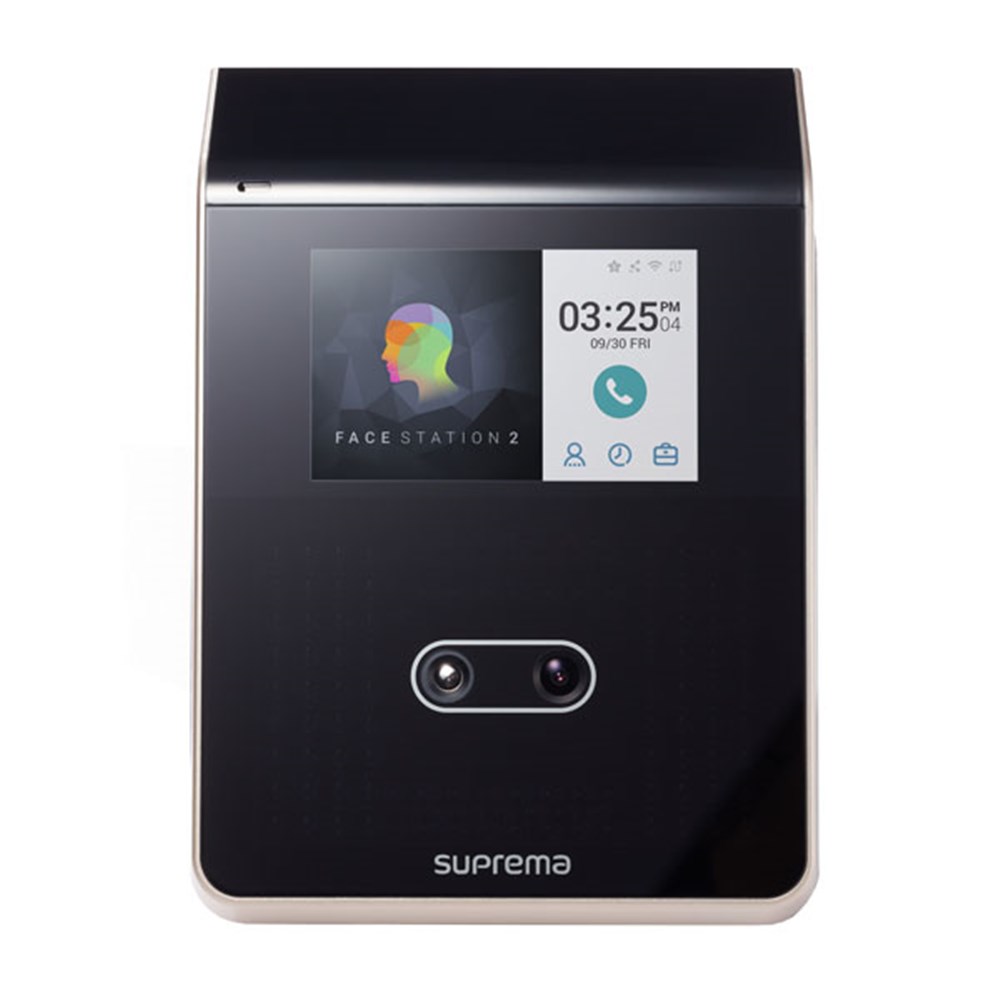

SUPREMA FaceStation 2 Facial Recognition, IP Fingerprint and RFID reader - reads EM and Mifare/DESfire (FS2-D)

Product Code: FS2D

Are you a tradesperson?

Get access to our best prices



This product is a special order (BTO) and is not returnable.
Description

Suprema FaceStation 2 is the most advanced face recognition terminal providing loads of the world’s best features. Powered by Suprema’s latest innovation in facial biometrics, FaceStation 2 offers unrivalled matching speed, accuracy and level of security.

With Suprema’s patented optic engineering, FaceStation 2 achieves up to 25,000 lx of operating illuminance which in turn, brings all-round confidence regardless of lighting conditions.

Packed in an ergonomically-designed structure, FaceStation 2 provides exceptional performance and usability for diverse access control and time attendance sites, large or small.

Model   FS2-D
RFID RF Option 125kHz EM & 13.56Mhz MIFARE, MIFARE Plus, DESFire/EV1, FeliCa
  Mobile Card NFC
Protections Ingress Protection Not supported
  Vandal Proof Not supported
  Template SUPREMA
Face Extractor / Matcher SUPREMA
  Live Face Detection Supported
  Users (1:1)
Based on one face enrollment per user
30,000
  Users (1:N)
Based on one face enrollment per user
3,000
Capacity (Face) Max. Face per User 5
  Text Log 5,000,000
  Image Log 50,000
  CPU 1.4 GHz Quad Core
  Memory 8GB Flash 1GB RAM
  LCD Type 4" colour TFT LCD
  LED 800 x 480 pixels
  Sound 24-bit Voice DSP (echo cancellation)
HW Operating Temperature -20°C ~ 50°C
  Operating Humidity 0% ~ 80%, non-condensing
  Weight Device: 548g, Bracket: 74g (Including washer and bolt)
  Dimension (WxHxD, mm) 141 x 164 x 125
  Tamper Supported
  Wi-Fi Not supported
  Ethernet 10/100 Mbps, auto MDI/MDI-X
  RS-485 1ch Host or Slave (Selectable)
  Wiegand 1ch Input or 1ch Output
  TTL Input 2ch Inputs
Interface Relay 1
  USB USB 2.0 (host)
  SD Card Not supported
  PoE Not supported
  Intercom Supported
Electrical Power DC 24V
Technical Specifications
Brand SUPA
Finish Black
Working Voltage 24 Vdc
Biometric Fingerprint Access Yes
Depth in mm 125
Overall Length in mm 164
RJ45 Ethernet Interface Yes
USB-A Interface (INTRFACE1) Yes
Wi-Fi 2.4GHz Connectivity Yes
Width in mm 141
RS-485 Interface Yes
Accepts RFID Cards/Fobs Yes
Accepts Smart Phone NFC and/or BLE Yes
