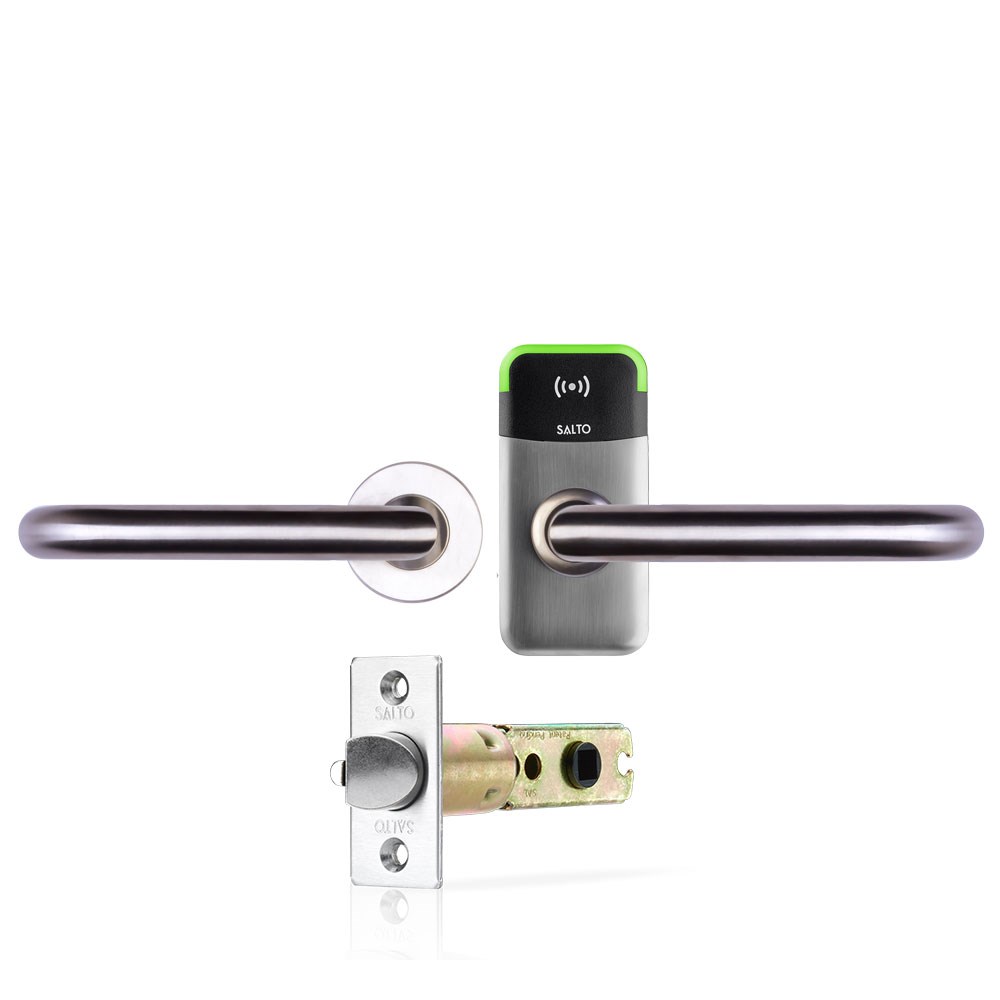

The SALTO XS4 Mini escutcheon is a revolutionary stand-alone electronic lock with Hardware Security Element (HSE) technology compatible with SPACE, KS and future platforms namely Homelok and Nebula.
It's the technology packed inside that brings together the convenience of an offline point - easy installation and no wires - with virtually the same kind of power and performance of an online point.
The SALTO XS4 Mini is a smart compactness simplifies installation in virtually any kind of door. It includes the latest electronic components in order to warranty a future proof feature compatibility.
The XS4 Mini version is specially designed to fit tubular latches.
Wireless for real-time control using SVN Salto Virtual Network.
BCA AS1428.1 -2009 compliant leverset.
- Simple installation using just two screws when installing in combination with SALTO LT2L tubular latches.
- Clear, dual colour optical signalling indicates access authorisation (Acoustic signal optional).
- High security via high resistance, hardened anti-drill protection.
- Concealed fixing screws for greater security and improved aesthetics.
- For indoor applications: quick and easy install makes it ideal for retrofits.
- Wide range of handles, configurations and door retrofit cover plates to meet the installation needs.
- Suits door thicknesses: 35 up to 90 mm.
- Reversible handle left or right electronic lock.
- Clutch mechanism escutcheon, when unlocked handle moves freely.
- Handle rotation: 29º.
- Diameter 65 rose inner
- Initial max. 4º pre-turn. SALTO recommends the use of a mortise lock with a maximum 4º pre-turn.
- Compatible with SALTO LT2L tubular latch.
- Handle compatibility: 16 mm Ø.
- Square spindles available: 8 mm.
- Dimensions: 127 x 58.5 x 22.5 mm.
