RP10 long single door set clear anodised 1 x 1000 mm 2 x 2750 mm.

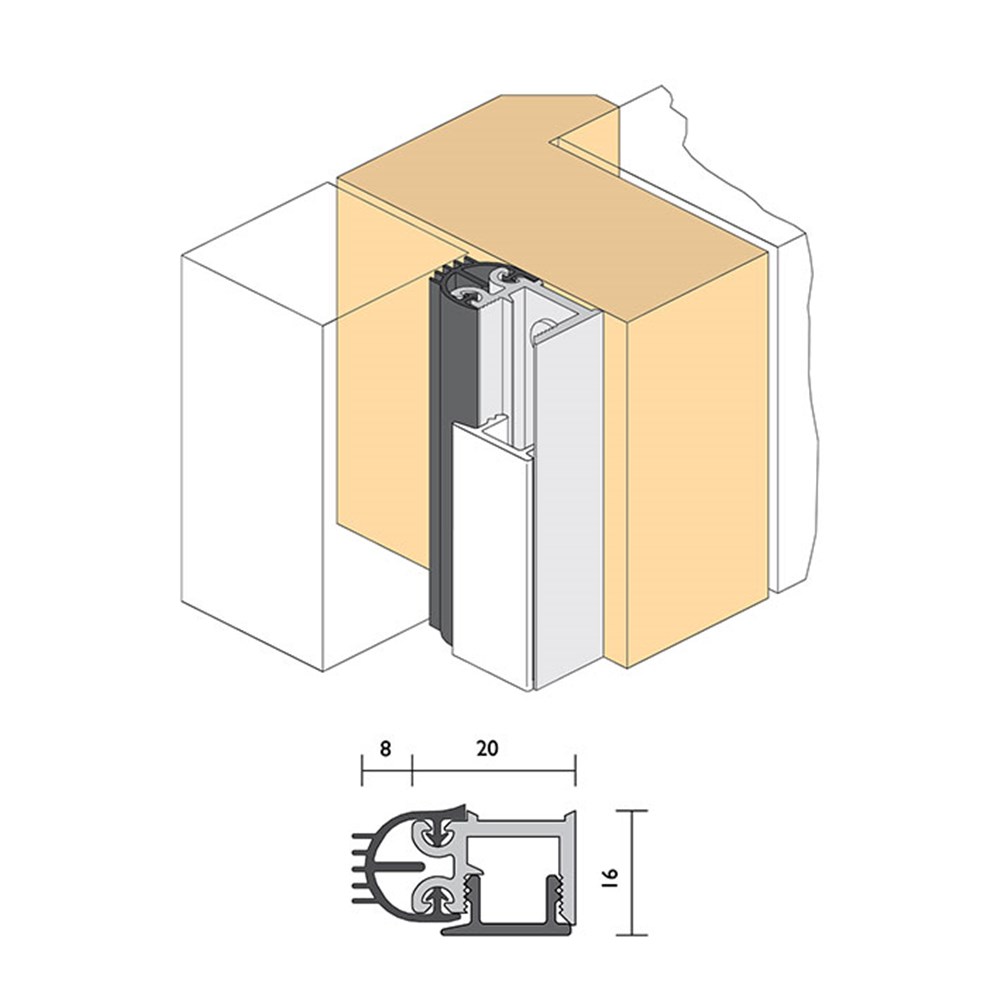

An effective acoustic door stop frame seal which is quick and easy to install on plain or rebated door frames. Multi-fin design for improved noise and energy sealing. The minimum deflection design creates maximum sealing efficiency.
RP10 can be mitred or butt jointed for a neat finish. Adjustable by large concealed fixing slots for a precision fit, RP10 has a tamper resistant, rigid PVC cover strip (SE). Can be used on all four sides of the door to form a bulk head seal.
Note: If fixing to to rebated frames of single doors, specify a long backset door latch.
Location: Head and jambs of single and double butt hinged doors.
Min/Max Gap: 0 mm to 10 mm.
Finish: Satin clear (silver), bronze anodised aluminium (15µm) or paint at extra cost.
Fixing: Screw fix. Zinc plated, cross recess head S.T. screws supplied.
Seal: RP410 black flexible PVC, black rigid flexible PVC (SE).
Sizes: Available in door set sizes or stock lengths.
Approvals
Acoustic AUS/NZ: NCC Spec. F5.5.
UK/EU: Approved Document E. Rated to BS EN ISO 717.1.
Fire AUS/NZ: NCC Spec. C3.4. AS1530.4 & AS/NZS 1905.1. NZ BC Compliance Doc. C/AS1 6.19.2 & App. C6.1.1.
UK/EU: Approved Document B. BS 476 Pt. 20 & 22 (similar to BS EN 1634-1).
FRL & FRR-/240/30 and FD240.
Energy NCC Pt. 3.12.3.3 & J3.4.
Registered Design.
