Raven RP3 Door Bottom Seal 1220mm Clear Anodised - R3C4

Product Code: 55721400

Are you a tradesperson?

Get access to our best prices



This product is a special order (BTO) and is not returnable.
Description

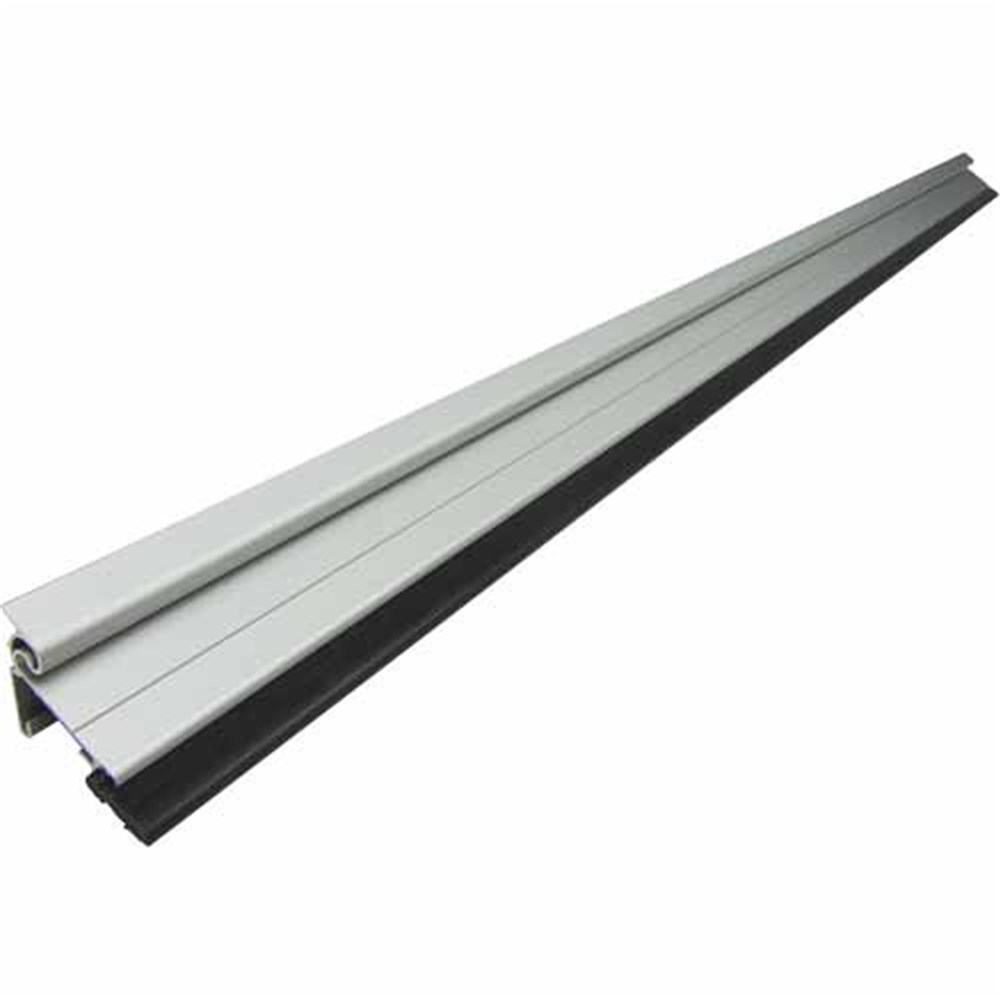

A cam activated, lifting action, automatic door bottom seal. It is quick and easy to install without cutting or removing the door and uses concealed fasteners. This DIY product has been granted an Australian Design Award. Ideal for residential and light commercial applications such as motels and retirement villages.

Can be used in conjunction with Raven threshold plates.

Location: Bottom of single inward opening butt hinged doors.

Min/Max Gap: 3 mm to 16 mm.

Finish: Satin clear (silver), bronze or bright gold anodised aluminium (15µm).

Fixing: Screw fix. Zinc plated, cross recess head S.T. screws supplied. Fixing holes are pre-slotted.

Sizes: 915 mm and 1220 mm maximum (between door stops).

Approvals
Fire Gasket flammability index < 5 when tested to AS1530.2.
Energy NCC Pt. 3.12.3.3 & J3.4.
Durability Tested to over 1,000,000 operating cycles without failure.

Patented.

  • Suits inward opening, hinged single doors.
  • Automatically lifts to clear carpets as the door opens.
  • Stops heat, cold, draughts, dust and insects.
  • Length: 1220 mm, fixings supplied.
  • Simply cut seal to size.
  • Finished in clear anodised.
Technical Specifications
Brand Raven
Finish Clear Anodised
Door Seal Type Automatic Bottom Door Seal
Overall Length in mm 1220
Door Seal Set Individual Seal
