Bottom Seals

RAVEN BRUSH SEAL RP2Ax1000MM CA

Product Code: RP2AX1000CA

Are you a tradesperson?

Get access to our best prices



This product is a special order (BTO) and is not returnable.
Description

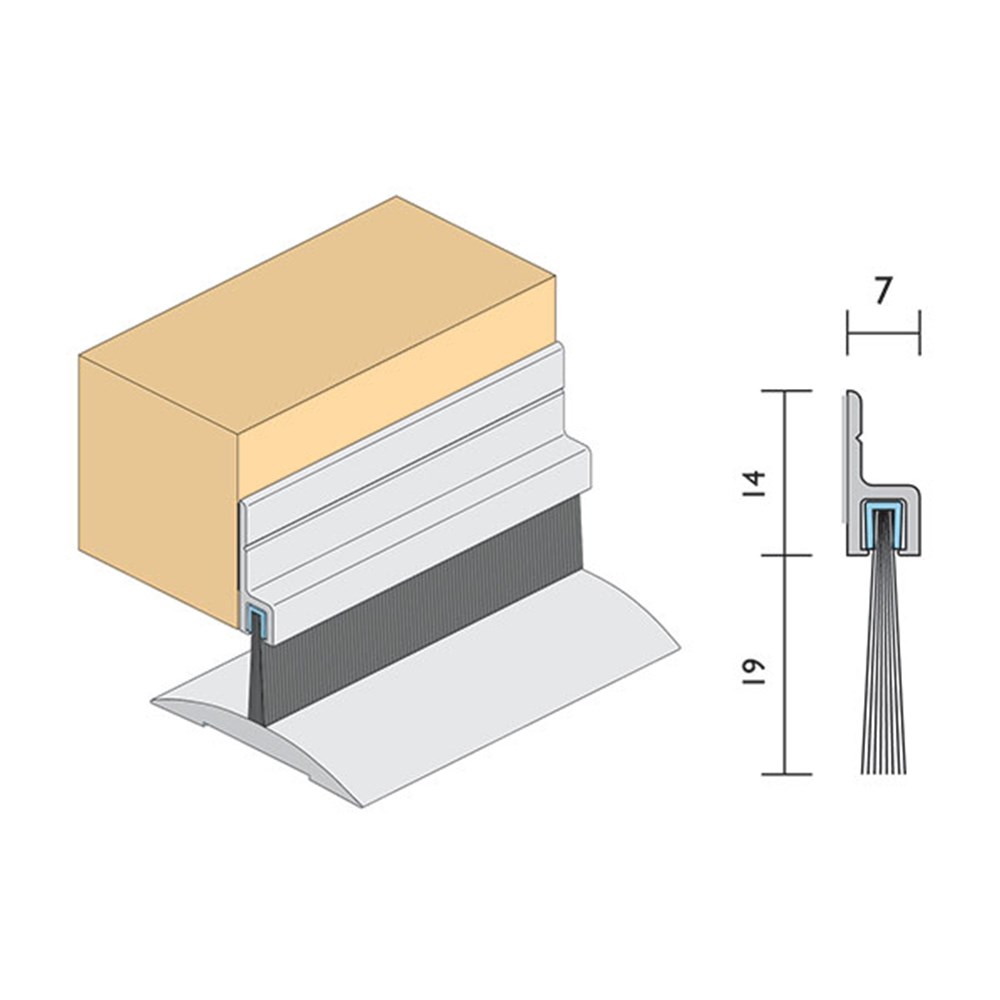

A nylon brush strip seal with an anodised aluminium carrier that mounts to the inside or outside of a door. It is ideal for sliding or double acting doors.
Can be concealed inside of an aluminium door suite bottom rail by the fabricator.
Used in conjunction with Raven threshold plates.

Location: Bottom of single, double, sliding and double acting doors.

Min/Max Gap: Up to 19 mm (user determined).

Finish: Satin clear (silver), bronze anodised aluminium (15µm) or paint at extra cost.

Fixing: Self adhesive or can be screw fixed. Note: Contact surface must be clean, smooth and if painted, well cured. Self adhesive seals will not adhere to oiled or alkyd finishes or to easy clean wash and wear paint surfaces.

Seal: Black fine, dense, UV stabilised nylon filaments.

Sizes: Available in stock lengths.

Approvals
Energy NCC Pt. 3.12.3.3 & J3.4.
Fire Approvedwhen used on a garage in accordance with AS 3959.

Technical Specifications
Brand Raven
Finish Clear Anodised
Fire Rated No
Door Seal Type Brush Seal
Overall Length in mm 1000
Door Seal Set Individual Seal
