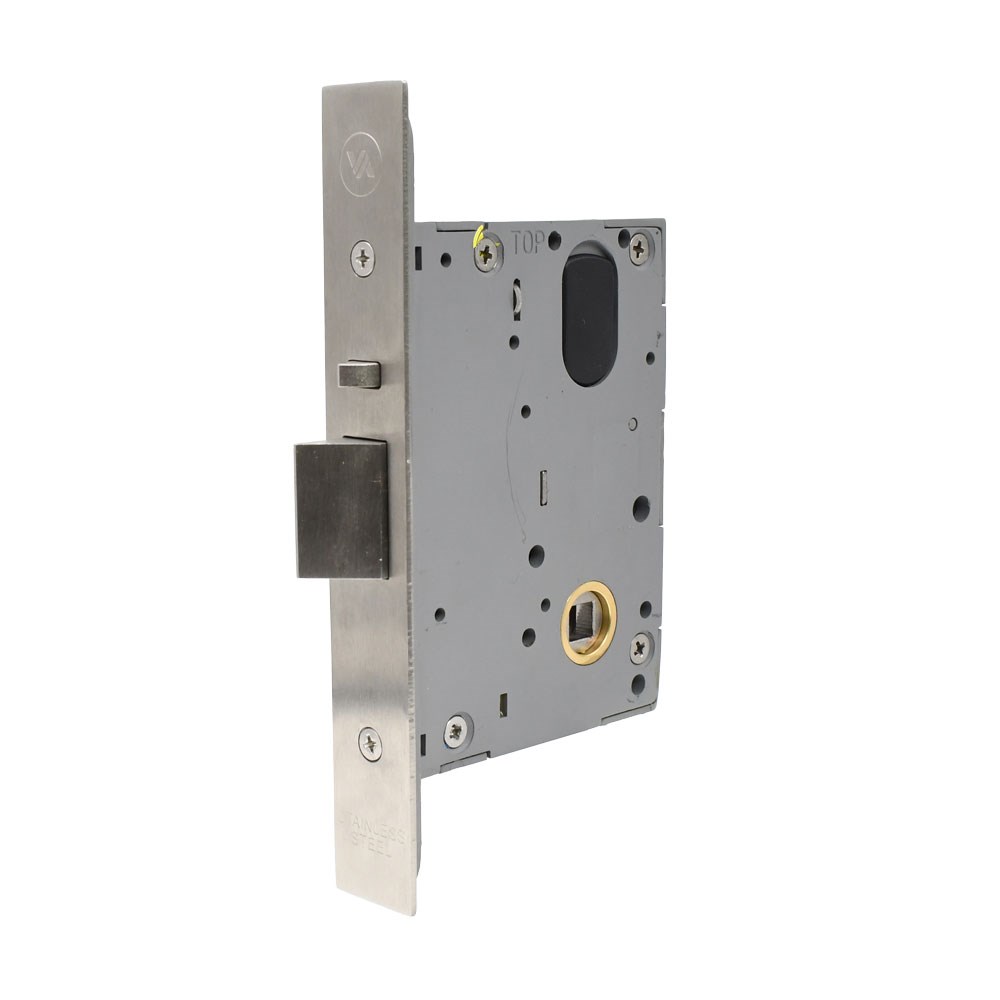

Parasol mortice lock designed to compliment SALTO escutcheon installations. Perfect for commercial applications requring a wide body solution with a 33 degree rotation lever.
Manufactured with an 8 mm straight through hub eliminating the need for split spindles.

• Cast Alloy lock case.
• 60 mm backset.
• 8 mm through hub (supplied with 8 mm straight spindle).
• 33 degree rotation.
• 14 mm stainless steel reversible latch.
• Supplied less cylinder.
• Compatible with 33 degree rotation SALTO escutcheons.
• Suits door thickness 32-50 mm.
• Lock case dimensions 120 (H) x 84 (D) x 19 mm (W).
• Face plate 175 x 25 mm.
• Finished in satin stainless steel.
