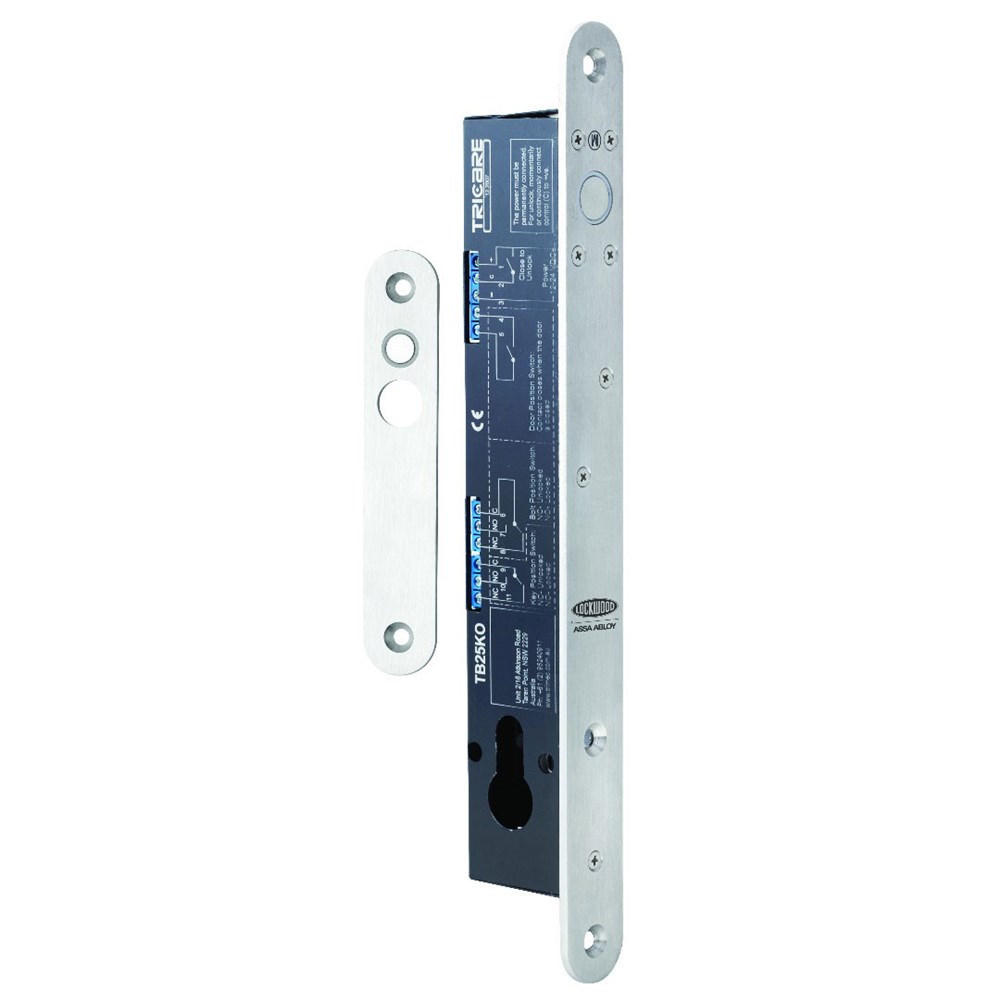

The TB25KO drop bolts represent true engineering innovation, design excellence and the superior quality customers have come to expect and demand from Lockwood. Designed for use on swing-through, double action doors, these drop bolts are ideal for applications where an electric strike is impractical. The TB25KO offers a unique mechanical override designed to use with a euro profile cylinder.
- High Security. Bolt is deadlocked in the extended position.
- Mechanical key override (Euro cylinder not included).
- Bolt position monitored.
- Door position monitor with integrated magnet into the strike plate (no need to install a separate reed switch).
- Multiple Orientation, drop bolts will work horizontally or vertically.
- Power to Lock/ Power to Open.
- 12 to 24Vdc, 110mA @ 12Vdc ~ 1000mA @ 24Vdc.
- Holding current 210mA @ 12Vdc ~ 90mA @ 24Vdc.
- Continuously Rated Solenoid.
- Tamper Proof. Lock cannot be defeated by slipping a metal object between lock and striker plate.
- Intelligent Electronics. These intelligent bolts will attempt to re-close the bolt 8 times, allowing time for swing through doors to settle in the closed position.
- Thermal Protection. In the event of solenoid overheat, a thermal fuse will operate, eliminating any fire risk.
- Bolt length 12.7 x 16 mm.
- Face plate dimensions 280 x 25 mm.
