Neptune Emergency Lockdown,ANSI,NO/NC/C,0.9mm SS,M/room,Red

Product Code: NEEANCBMR

Are you a tradesperson?

Get access to our best prices



Description

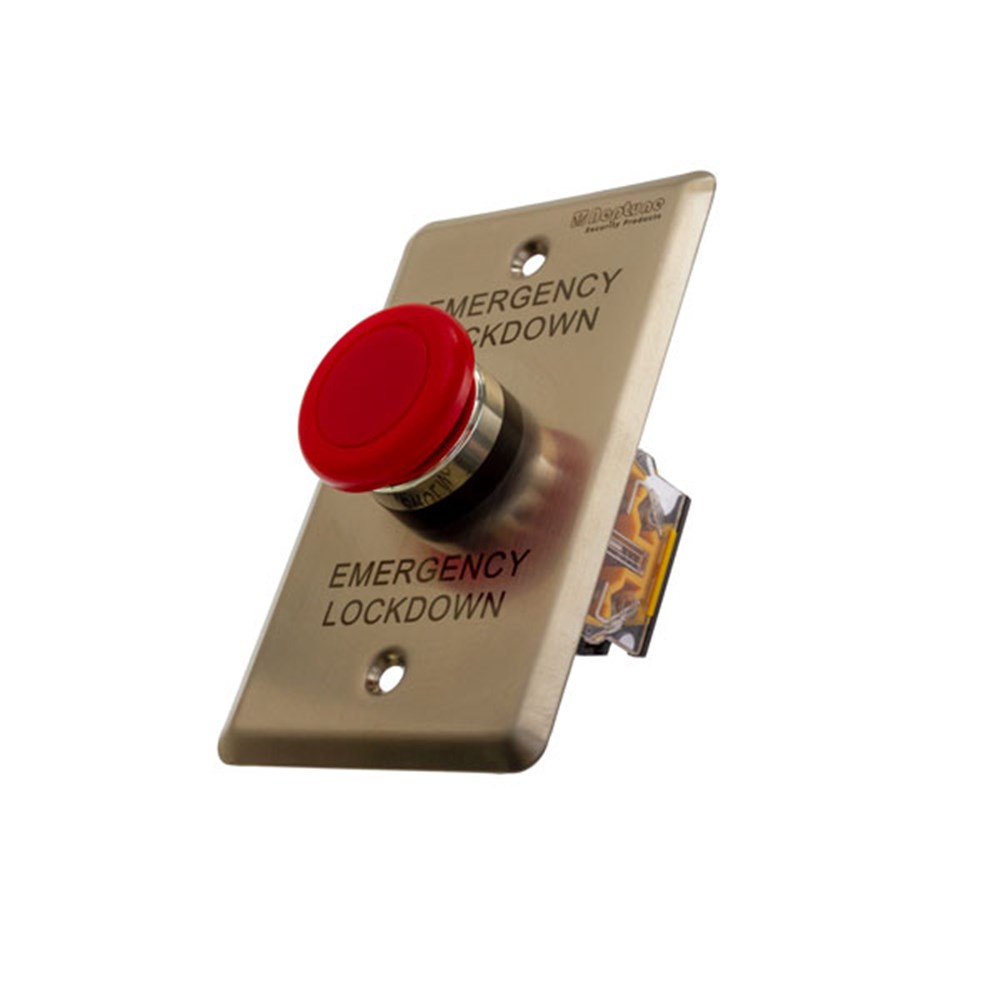

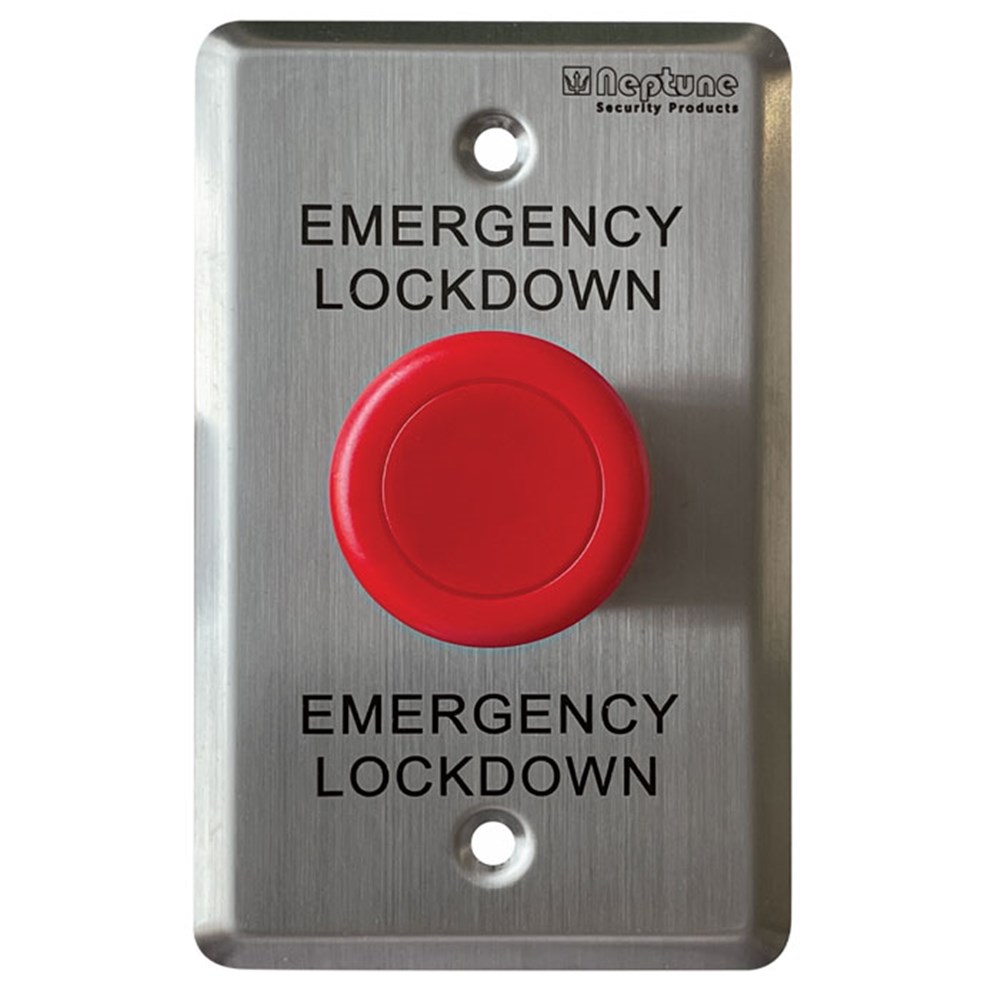

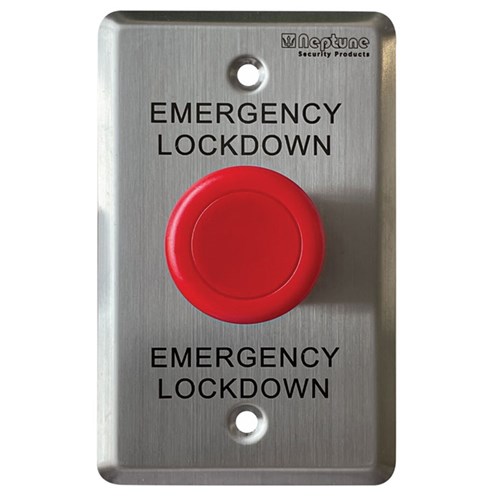

Neptune "Emergency Lockdown" red mushroom button.

  • Contact rating: 5A/125-250VAC.
  • Button diameter: 35 mm.
  • Button: Self reset.
  • Output: 1NO 1NC.
  • Output contact: NO/NC/COM.
  • Mechanical life: 100,000 tested.
  • Panel: 0.9 mm thick 304 stainless steel.
  • Operating temp: -20℃~ 55℃.
  • Operating humidity: 0-95%(relative humidity).
  • Installation diameter: 36 x 30 mm.
  • Fixing centres: 83 mm.
  • Dimensions: 115 (L) x 70 (W) x 50 mm (D).
  • Weight: 0.2kg.
Technical Specifications
Brand NEPTUNE
Finish Stainless Steel/Red
Current Rating 5 A at 125 Vac to 250 Vac
Momentary Yes
Depth in mm 50
Grade of Stainless Steel 304
Outer Diameter in mm 35
Overall Length in mm 115
Width in mm 70
Text or Symbol on Plate EMERGENCY LOCKDOWN
Touch or Touchless Operation Touch
