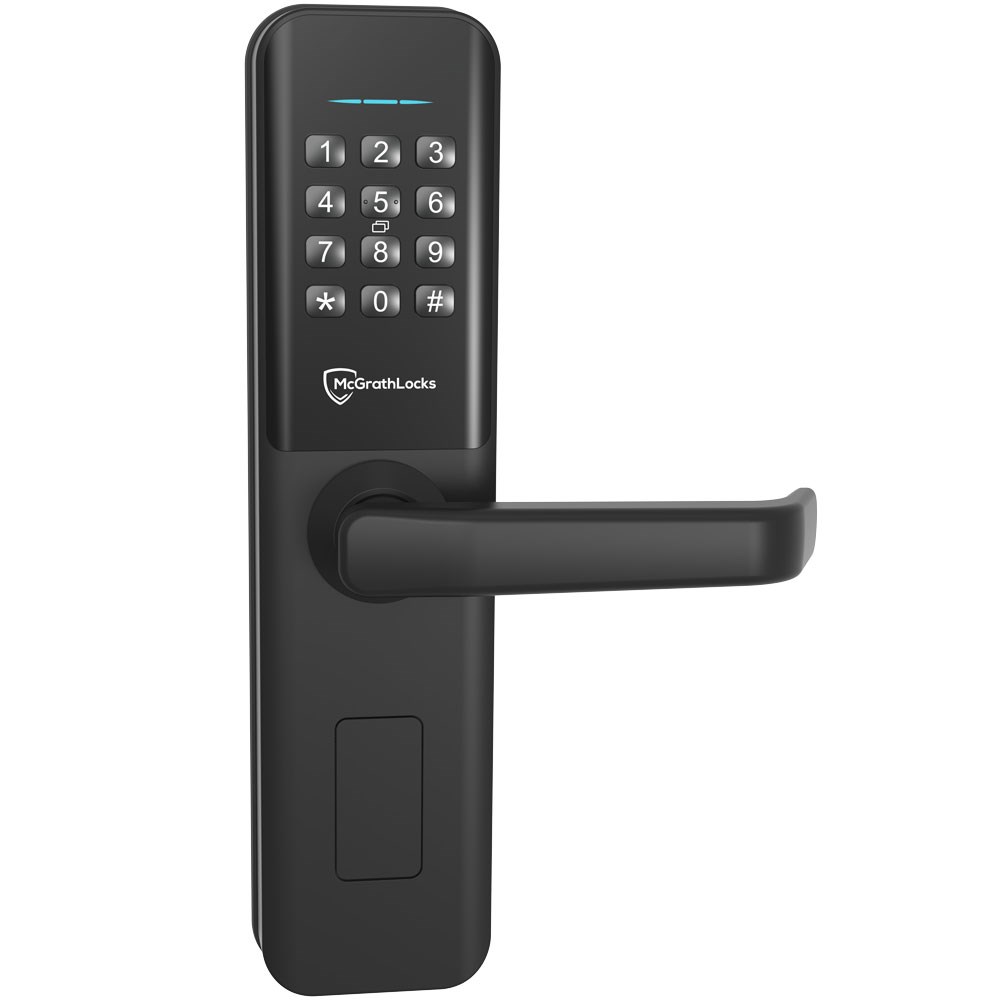

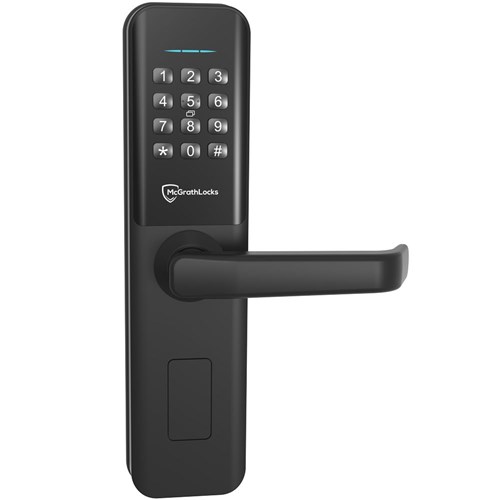

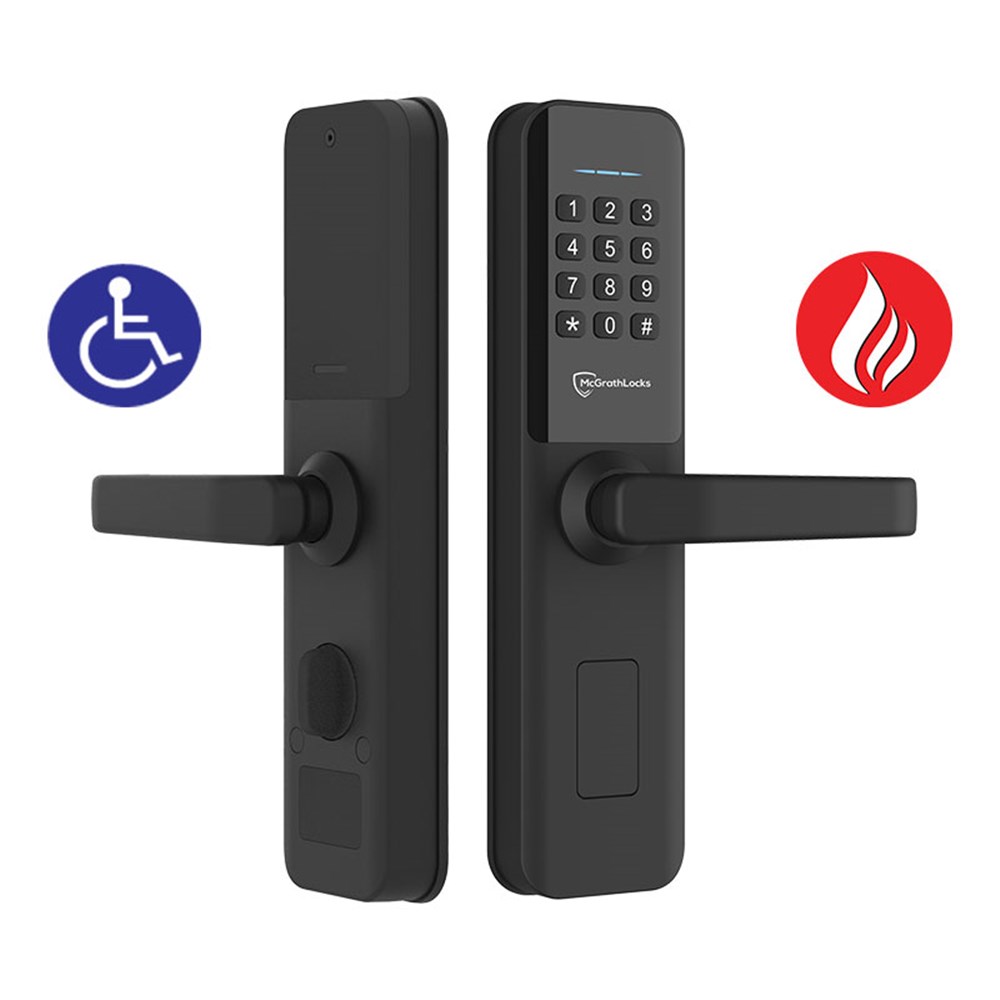

The Bardon by McGrath Smart Locks is a sleek and stylish lock, designed and manufactured with an emphasis on quality materials and durability. Featuring raised buttons with Braille to improve usability in all environments, this 4 in 1 digital door lock provides a versatile and convenient method of entry that allows you to easily manage who has access to your property.

Utilising the powerful McGrath Locks App, lock and user settings are easily configured and managed. Access can be provided to family and visitors alike through PIN code, RFID credential and eKeys managed via BLE and mechanical key override. The Bardon is supplied with a door sensor for optional door position monitoring and can be connected to a gateway giving you the ability to unlock your door from anywhere in the world using the McGrath Locks App.

The Bardon is equipped to suit the most demanding of applications, designed to compliment the McGrath Locks F54 and F05 ANSI mortice locks but can be installed with a European 85 and 92 pitch mortice lock or tubular latch (no key override). It has been constructed using fire resistant materials a tempered glass screen and carries an IP66 rating on the outside handle.

• Lock functions and access easily managed via McGrath Locks App.
• Enrol PIN Codes, RFID credentials and send eKeys to your family and visitors.
• Passage Mode can be used to leave your door open when required.
• Anti peep code function stops unauthorised people seeing the correct code inputted.
• Incorrect attempt lockout.
• Reset button can be disabled in App for additional security.
• Audit trail within app to see who accessed your door and when.
• Supplied with door sensor for optional door monitoring and alarming.
• Low battery alert (within app and audible at the lock).
• 4 x AA Alkaline Batteries (not included).
• Mechanical key override when installed with McGrath F54 / F05 ANSI mortice lock. Kawneer cylinder (extended thread) required.
• USB-C emergency opening.
• Tempered Glass Screen for extra durability.
• Field changeable handing.
• DDA compliant lever design to satifsy BCA AS1428.1 -2009.
• 2 hour fire rating for E-Core and Firecore doors when fitted with McGrath Locks F05 ANSI mortice lock.
• Suits door thickness 35-55.
• IP66 on external lock housing.
• Outside handle projection 62 mm.
• Lock case dimensions 270 (H) x 65 (W) x 25 mm (D).
• Finished in matt black.
• Australian Registered Design # 202513268.
