LOX Standard 12VDC Magnetic Door Holder Wall Mounted

Product Code: LR4012

Are you a tradesperson?

Get access to our best prices



This product is a special order (BTO) and is not returnable.
Description

Fire and smoke door magnetic door holder, titanium alloy surface finish, elegant appearance.

Installed on fire and smoke doors in projects where doors are required to be held in the open position for both pedestrian and general traffic, the devices have to be linked into the buildings fire/smoke alarm system.

  • Wall mount electro magnetic door holder.
  • Holding force up to 25kg.
  • 12V DC @ 160mA.

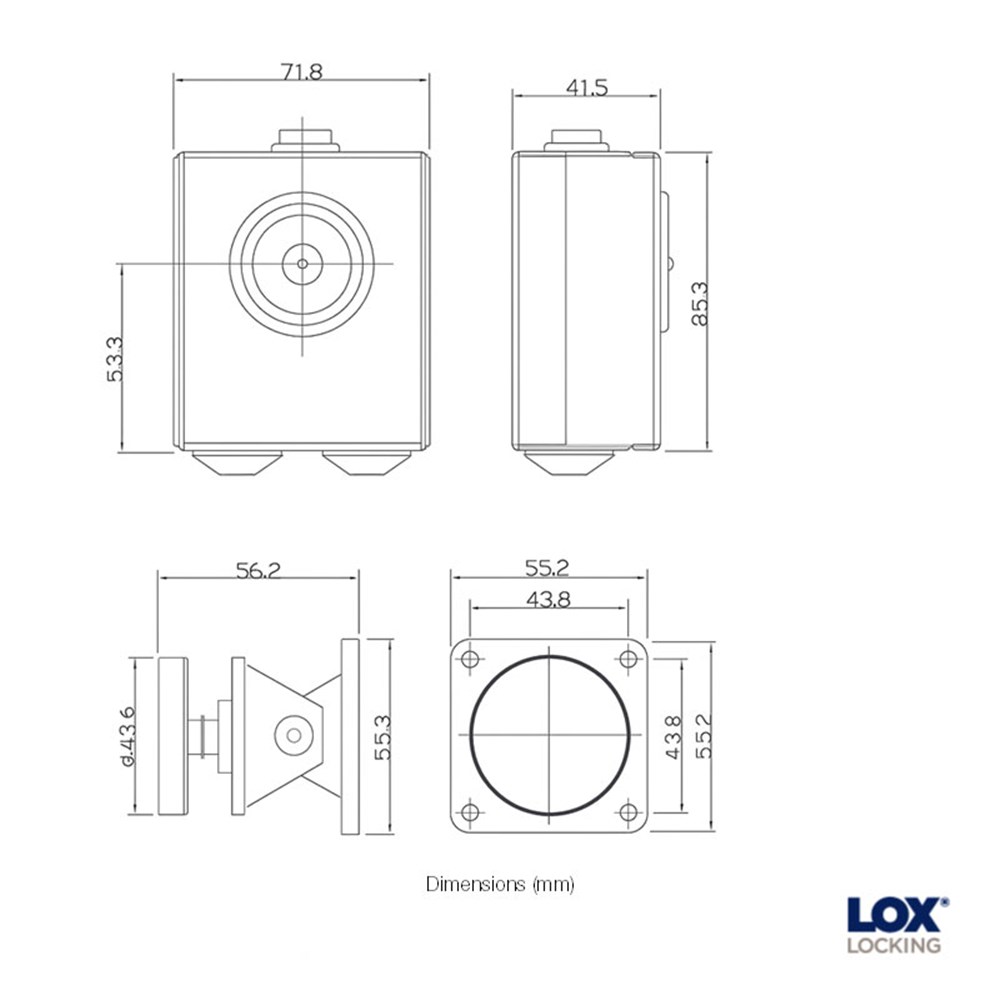

  • Size (D) 40 mm (W) 71 mm (H) 85 mm.
  • Push button door release.
  • Finished in cream.
Technical Specifications
Brand LOX LOCKING
Current 160 mA @ 12 Vdc
Finish Cream
Holding Strength in kg 25
Working Voltage 12 Vdc
Fire Rated Yes
Single Or Double Door Maglock? Single
Monitoring Non-Monitored
