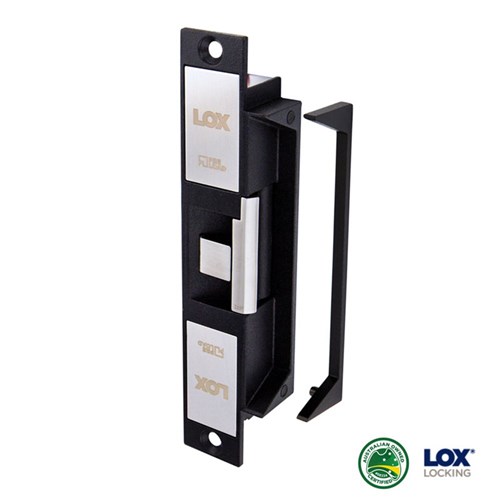

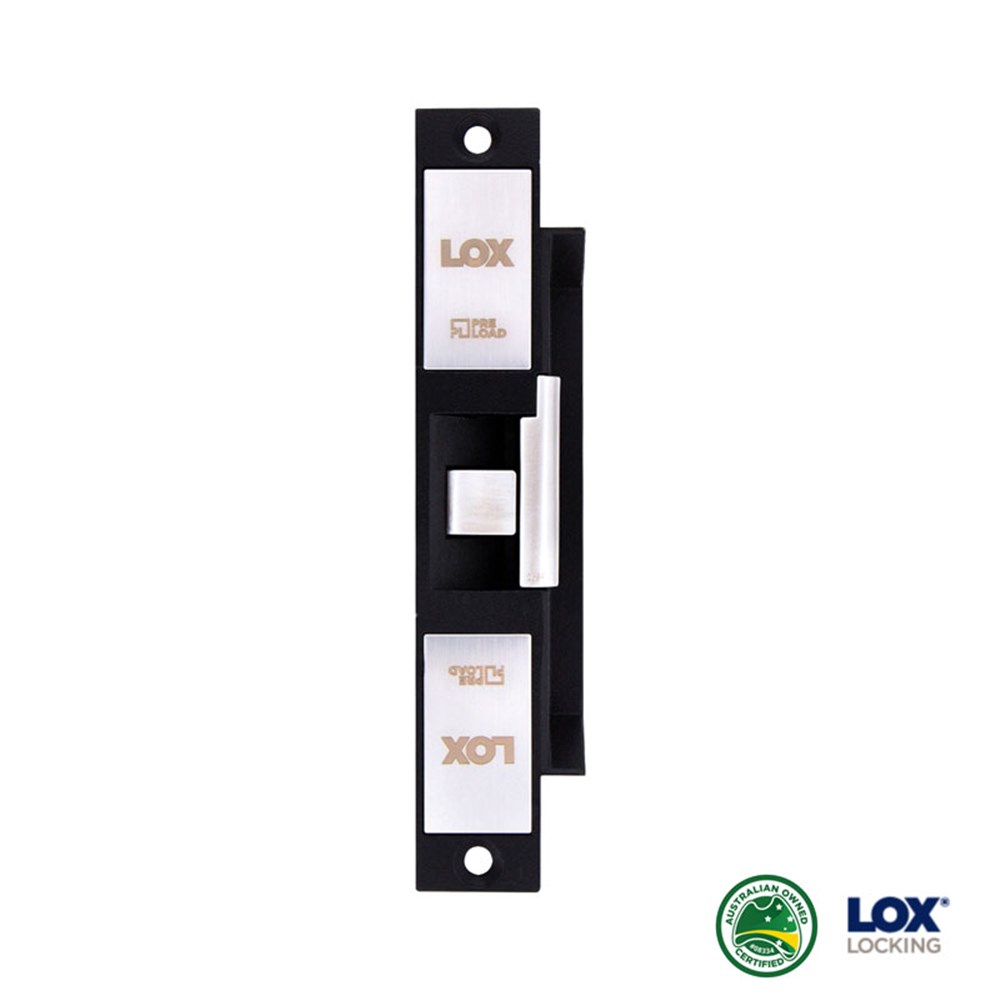

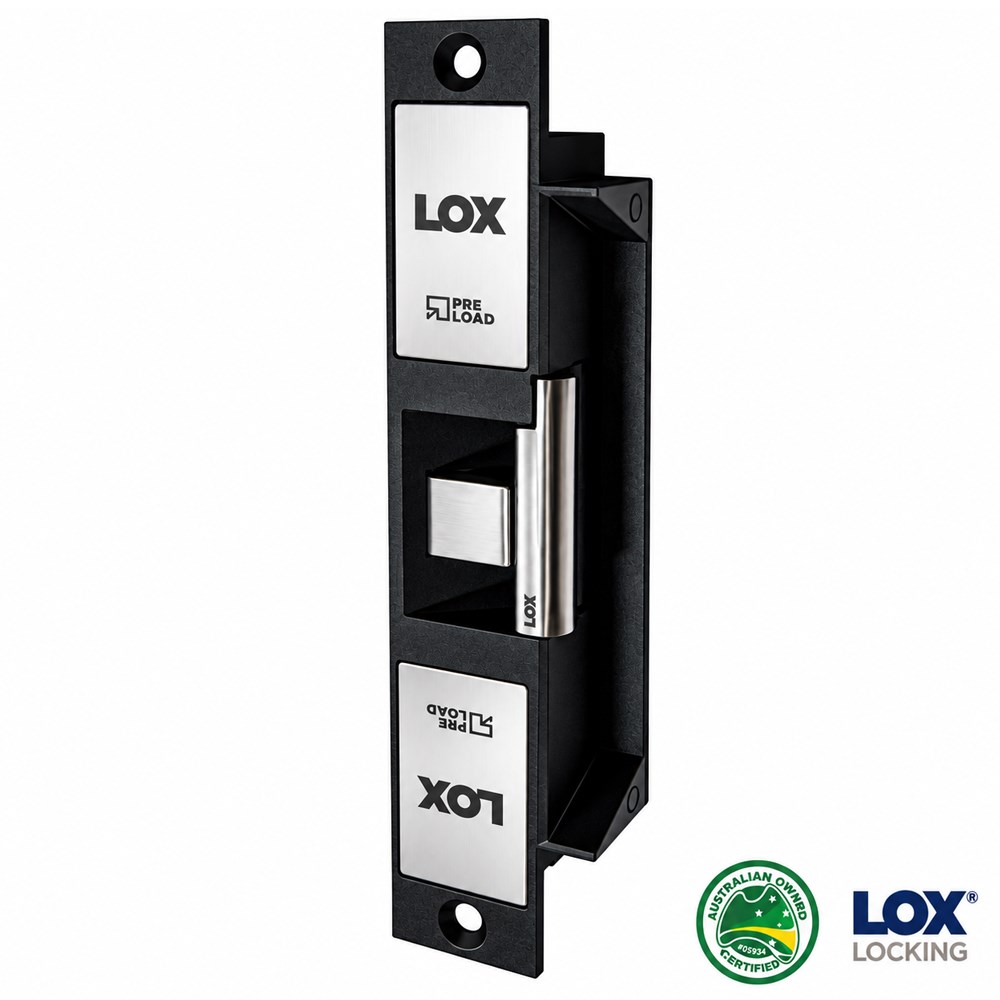

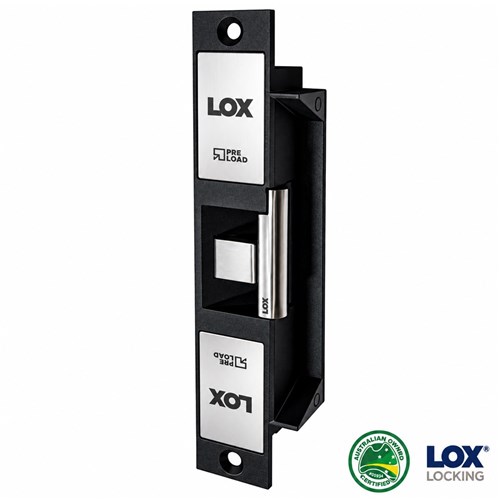

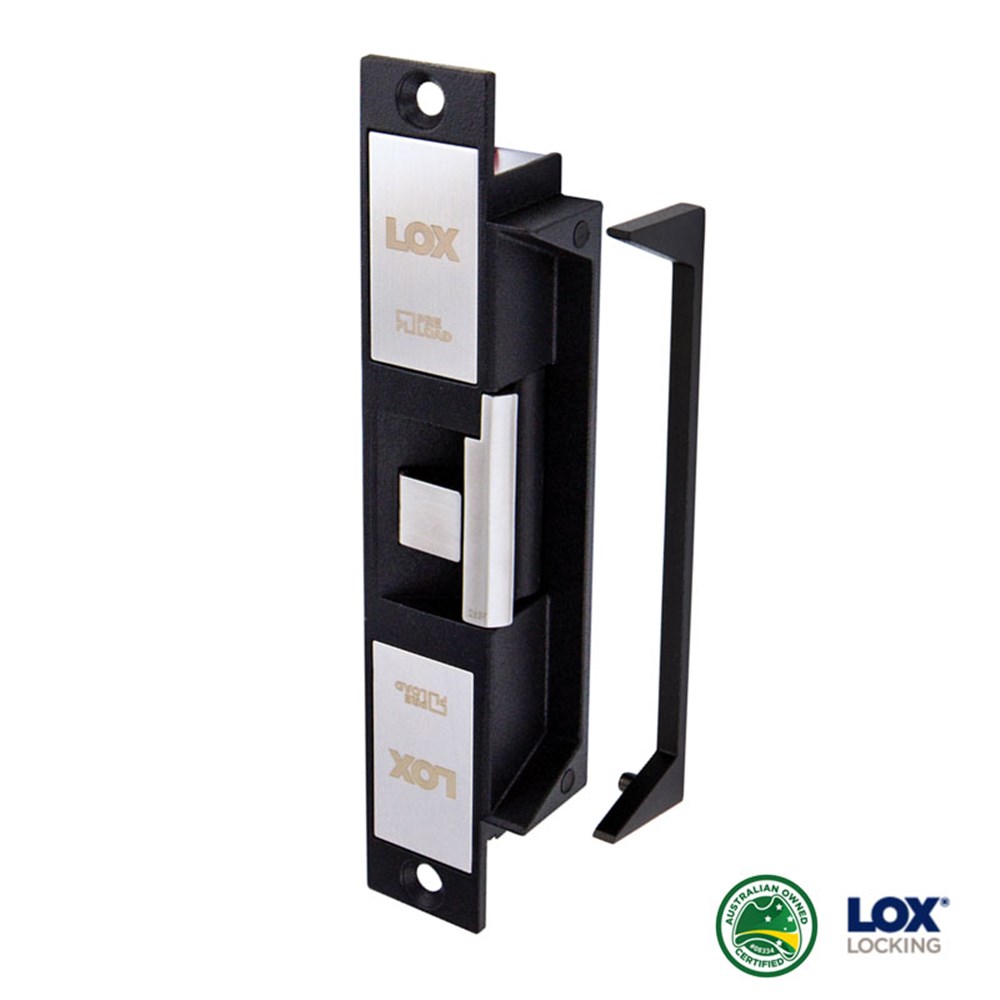

The LOX ES90M Electric Preload Strike is a premium, high-security door strike engineered to meet the demanding requirements of the Australian commercial access control market. Designed to perform reliably under conditions that typically hinder conventional strikes, the ES90M can operate seamlessly with up to 25kg of preload pressure — including forces caused by air pressure differentials, warped or misaligned doors, and heavy weather seals.

Manufactured from high grade stainless steel, the ES90M supports multi-voltage operation (10–30VDC) and features a field-selectable fail-safe/fail-secure configuration that can be changed on-site using only a small screwdriver. It has a 10 mm strike lip as standard, reducing potential hazards like clothing snags and personal injury — while offering pre-drilled compatibility with a variety of optional extension lips.

• Operate with up to 25kg of preload pressure.
• Multi voltage operation (10-30VDC).
• Field-selectable fail-safe/fail-secure.
• 10 mm strike lip as standard.
• Holding force of up to1300kg.
• Tested to 2.7 million endurance cycles.
• Integrates with all access control systems.
• 5 year warranty.
