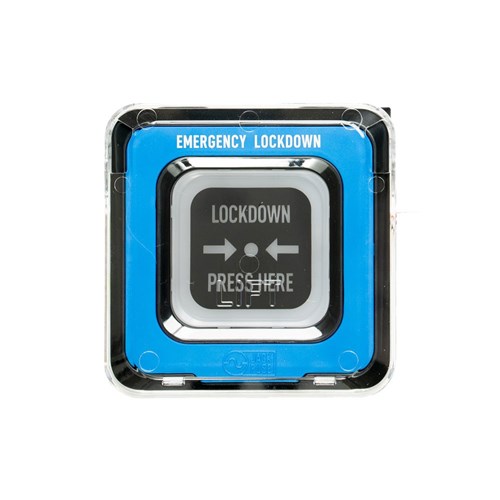

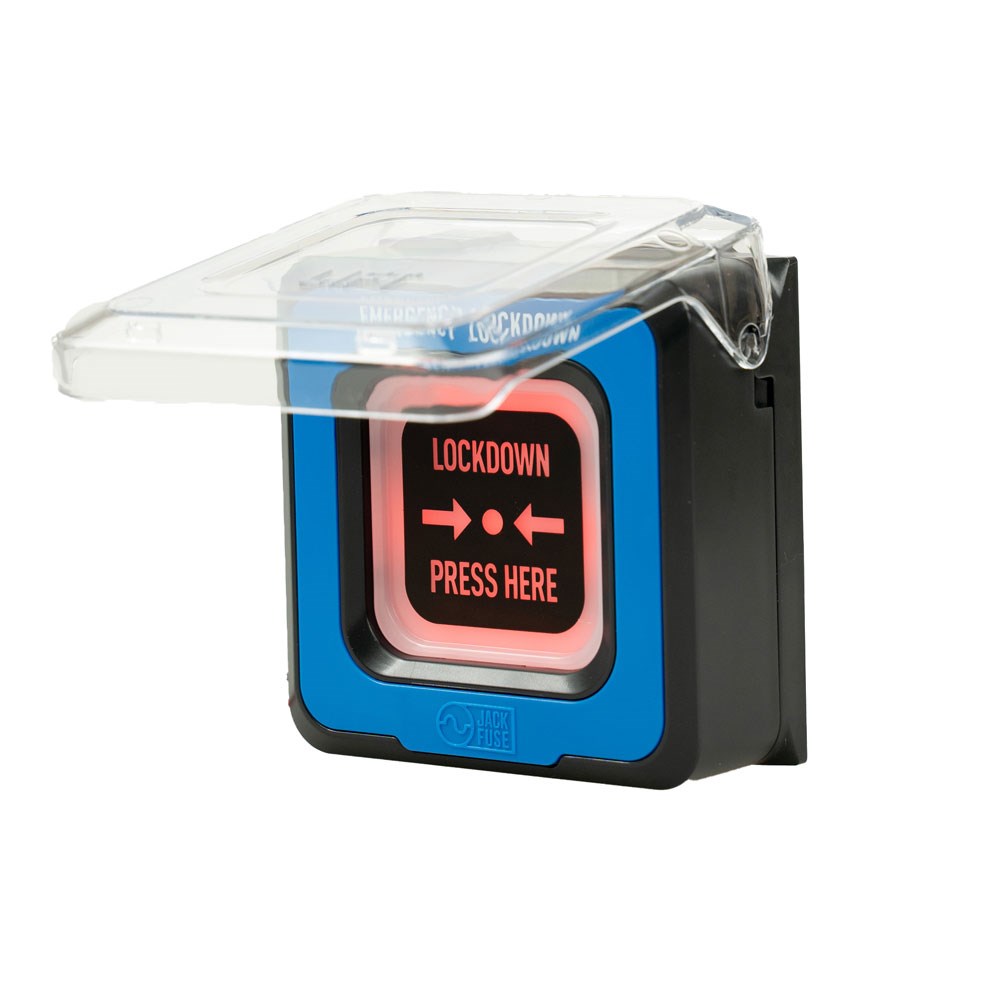

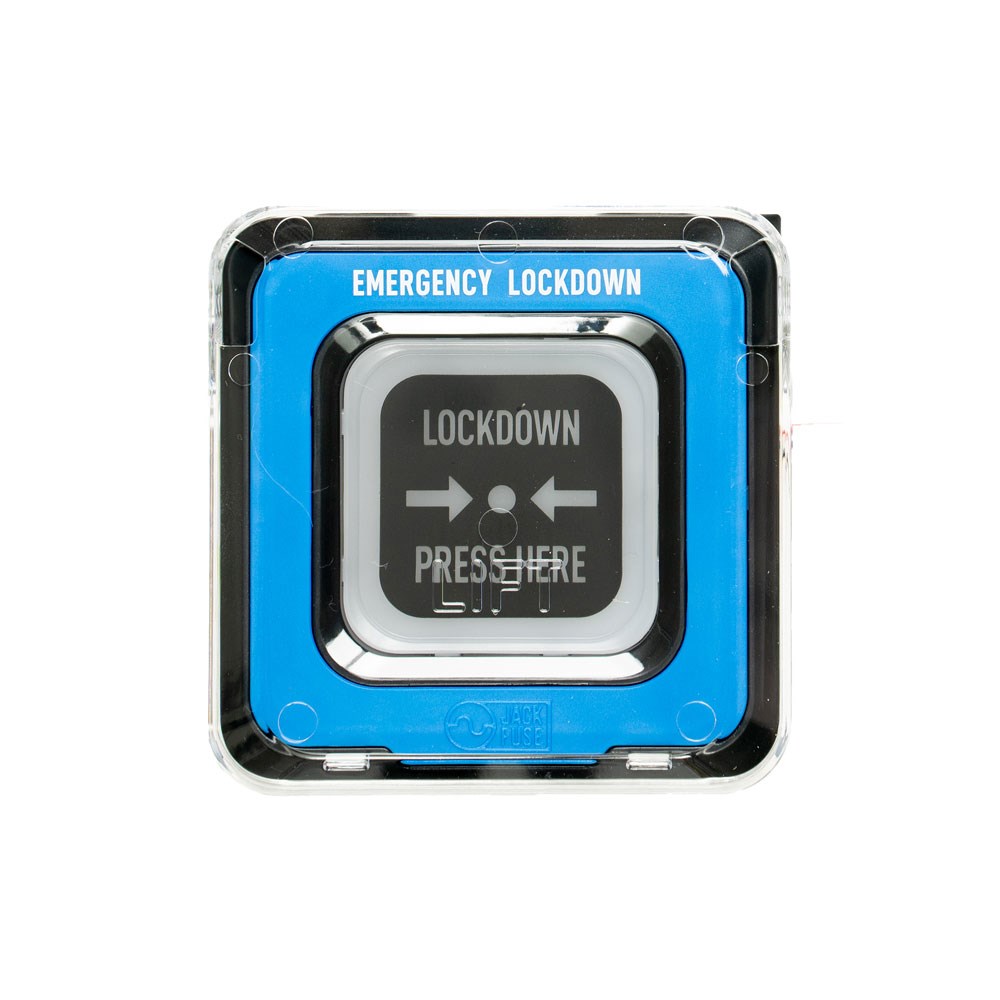

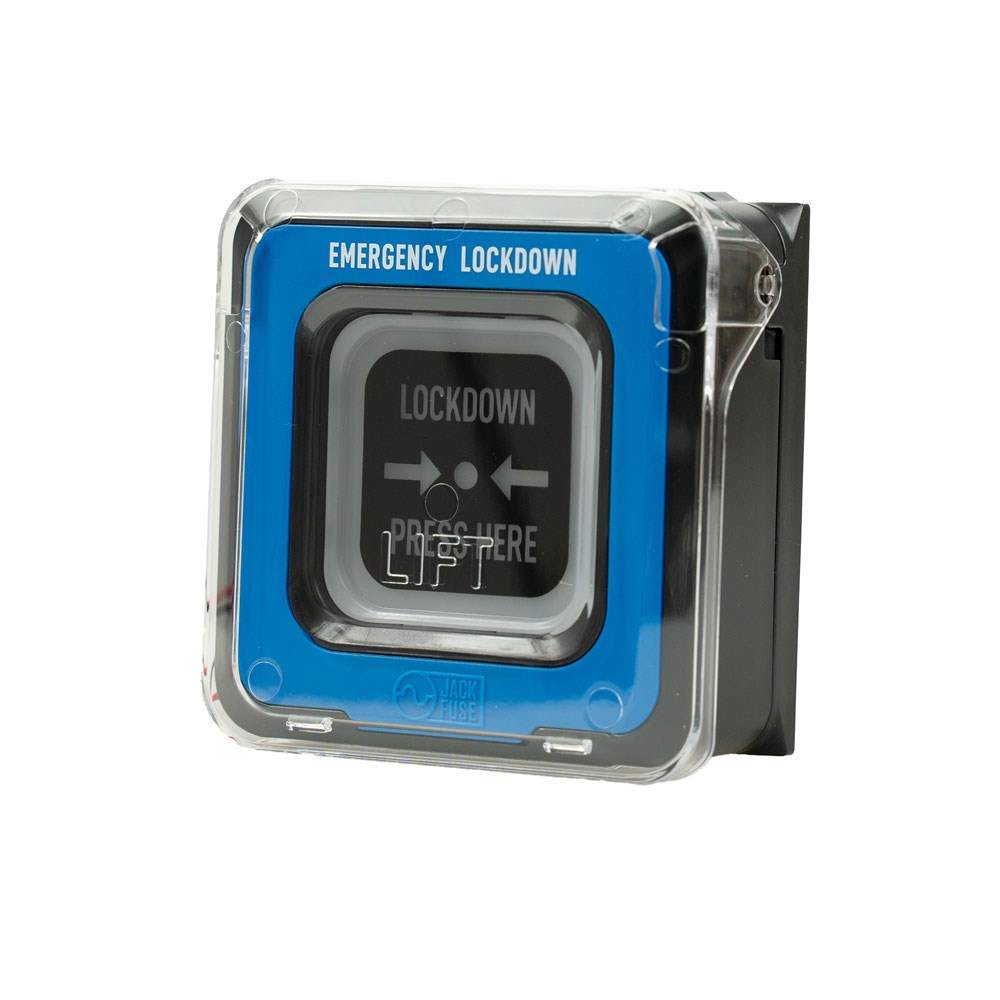

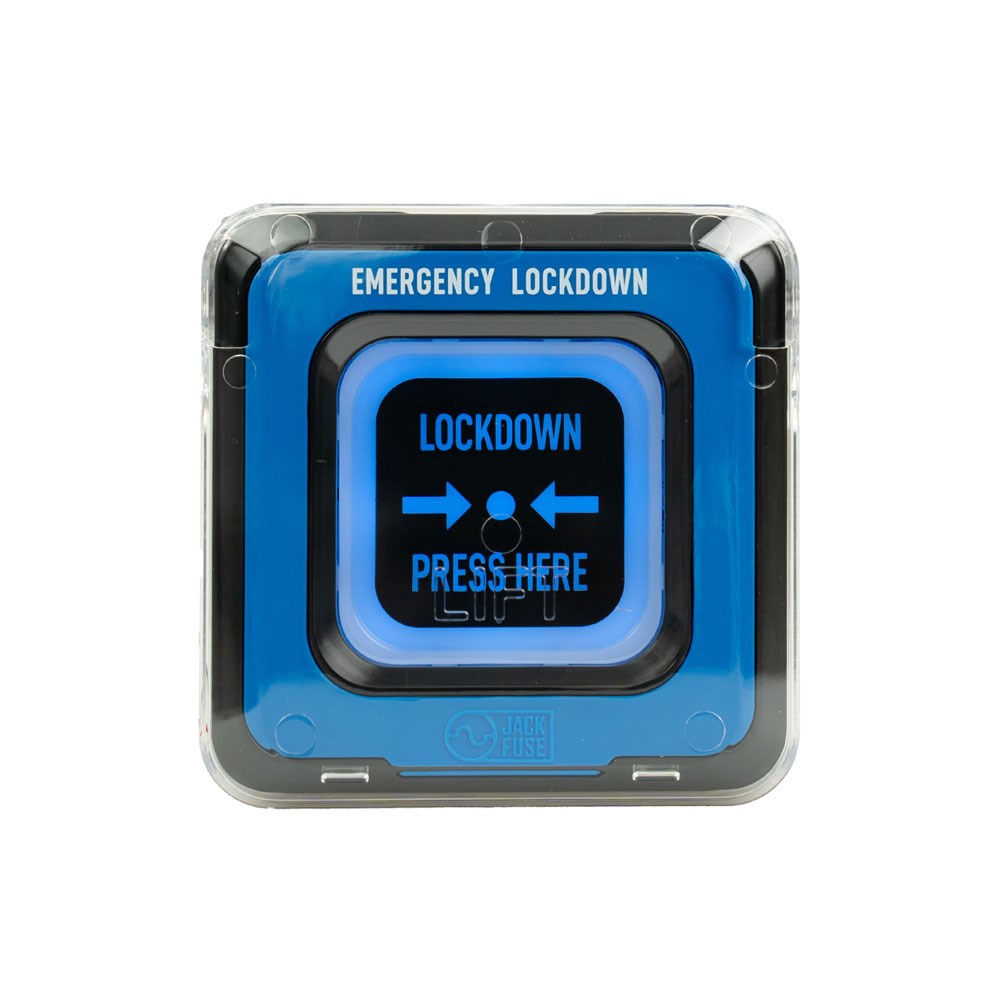

The Jack Fuse Safety Call Point is highly visible and easy to operate, thanks to integrated illumination and a large, clearly marked actuator. Instant LED and sounder activation helps guide responders and reassures users that the alarm has been successfully triggered.

• Active Feedback when Pressed.
• Redundant Activation Switches.
• Redundant Relay Output.
• Active Monitoring.
• Removal Tamper Alarm.
• Remote and Local Reset.

Specifications:

• Conductor size – terminals 2.5mm2 (22-12AWG).
• Relay contact max current - 1A.
• Relay contact configuration - SPDT (1 Form C).
• NC redundant.
• NO non-redundant.
• Aux output - 100mA, 12VDC (Vin).
• Tamper contact - NC 1A max.
• Power - 70mA @ 13.8VDC (not including AUX).
• Operating voltage - 12-14VDC (13.8VDC nominal).
• Dimensions - L X W X H 86x86x40 mm (with cover).
• RoHS - Compliant.
• AUS/NZ (RMC-EMC) 61000.6.3/4 - Compliant.
• Primary materials - Polycarbonate, Polyamide 46 & fiberglass,
• Country of origin - China.
• Recommended cable (tamper shared with alarm) - Four core security (14/020).
• Recommended cable (separate tamper monitoring) - Six core security.
