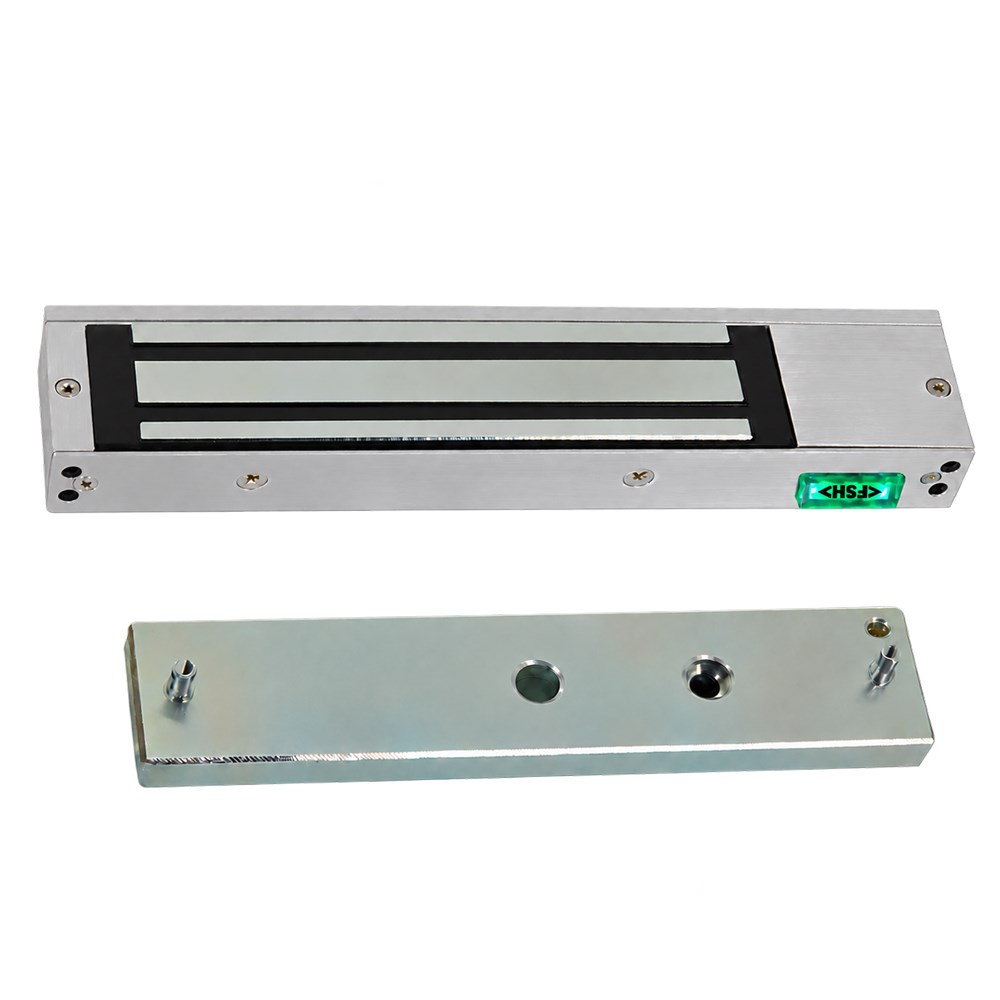

The FSH FEM4300 Series of electromagnetic locks come with a 5-year mechanical warranty and a hold strength of up to 280kg, so you have the peace-of-mind that entrances are secured to protect people and property.

Tested to Australian and New Zealand standards, including a 2-hour fire rating, these maglocks are Dual Voltage, 12/24VDC, and come in single or double (D) versions, either monitored (M) or non-monitored. Once powered off, the maglocks have no residual magnetism, which extends the life of the lock and door and gives a better user experience.

This monitored version includes a Hi-Vis red-Green coloured, LED indicator to quickly identify the door and lock status. Activated by a number of credential readers such as PIN pads, fob readers or other access control platforms, this range is ideal for most commercial applications.

• Dual Voltage: 12 /24 VDC field selectable
  12VDC@ 500mA 24VDC@ 250mA.
• Door and Lock Status Monitoring Sensor.
• Built-in varistor (MOV) surge protection.
• Hi-Vis red-Green coloured, LED indicator.
• No residual magnetism.
• Holding force up to 280kgs per magnetic lock.
• Satin anodised aluminium housing.
• Zinc plated electromagnetic body.
• Magnet size 238 (L) x 49.2 (W) x 26 mm (D).
• Armature plate 158 (L) x 38 (W) x 12 mm (D).
• 5 year warranty.
• Fire Rated (up to 2-hour fire rated in accordance with AS 1905.1:2015).
