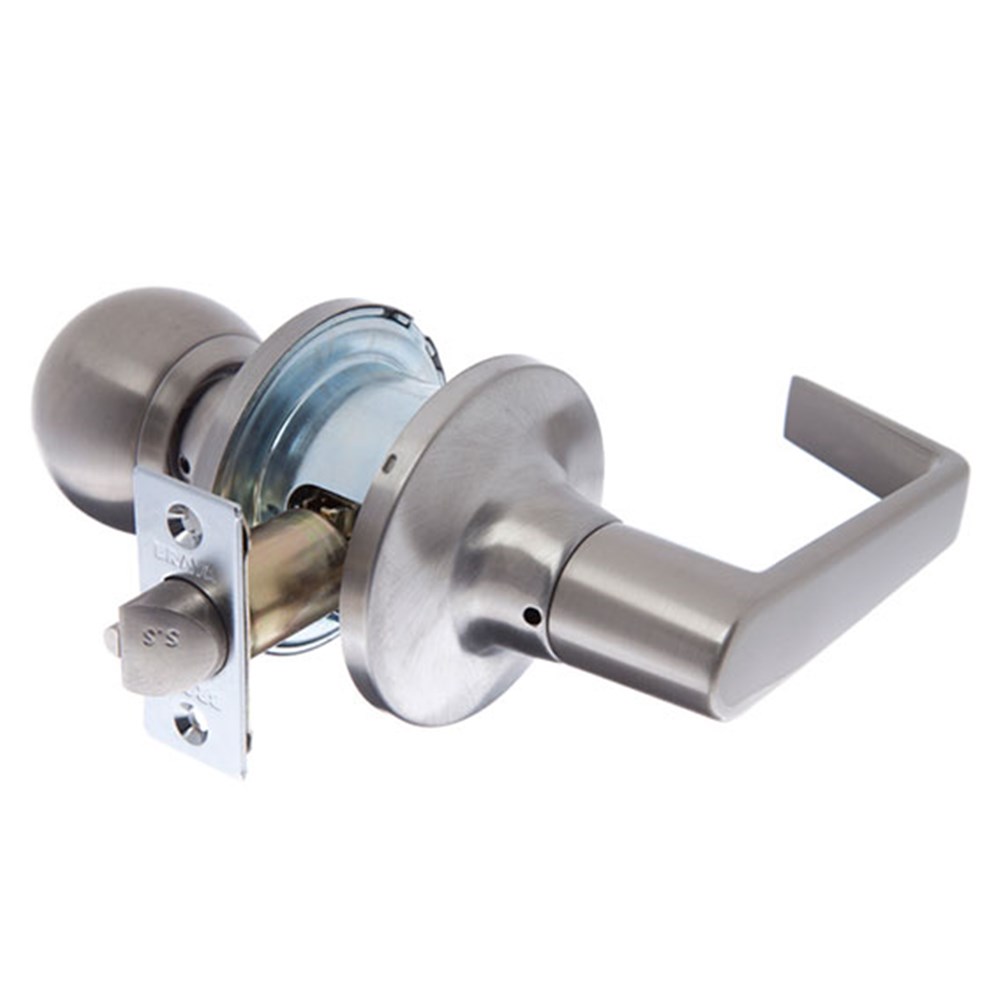

BRAVA Metro RA Series Tiebolt Storeroom Combination Knob/ Lever Set Adjustable Backset Satin Chrome - RA3H6062SC

Product Code: RA3H6062SC

Are you a tradesperson?

Get access to our best prices



Description

BRAVA Metro RA3H series tiebolt 60-70 mm backset storeroom knob/leverset. Commercial grade.

firerated-icon Successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets.

Storeroom function

  • Outside knob unlocked by key, knob retracts the latch.
  • information-icon Outside knob can not be left unlocked, key retained.
  • Inside lever free at all times.

Additional info

  • Tiebolt concealed fixing.
  • External spherical knob.
  • Internal lever.
  • Silca LW5 profile 6 pin cylinder.
  • Incorporates the popular PD 8221 barrel.
  • Compatible with most restricted keying systems.
  • Boxed and colour coded.
  • 2 keys supplied.
  • Fire rated.
  • Finished in satin stainless steel.
Door thickness 35-45mm
Backset 70mm
max. Lever / knob projection
distance may not include turnsnib
54mm (lever), 68mm (knob)
Strike 70mm x 28mm x 2mm
Latch 70mm
Latch face plate 57mm x 25mm
Cylinder LW5 profile
Door handing Non-handed knobs/levers
Rose 75mm

Technical Specifications
Brand BRAVA
AS1428.1 Compliant Lever (AS1428.1CO) No
Finish Satin Chrome
Function Storeroom
Lock Configuration Knob/Lever
Lock Grade Commercial
Lock Type Tiebolt
Rose Diameter (in mm) 75
Suits Door Thickness 35 mm to 45 mm
Backset 60/70 mm Adjustable
Fire Rated Yes
