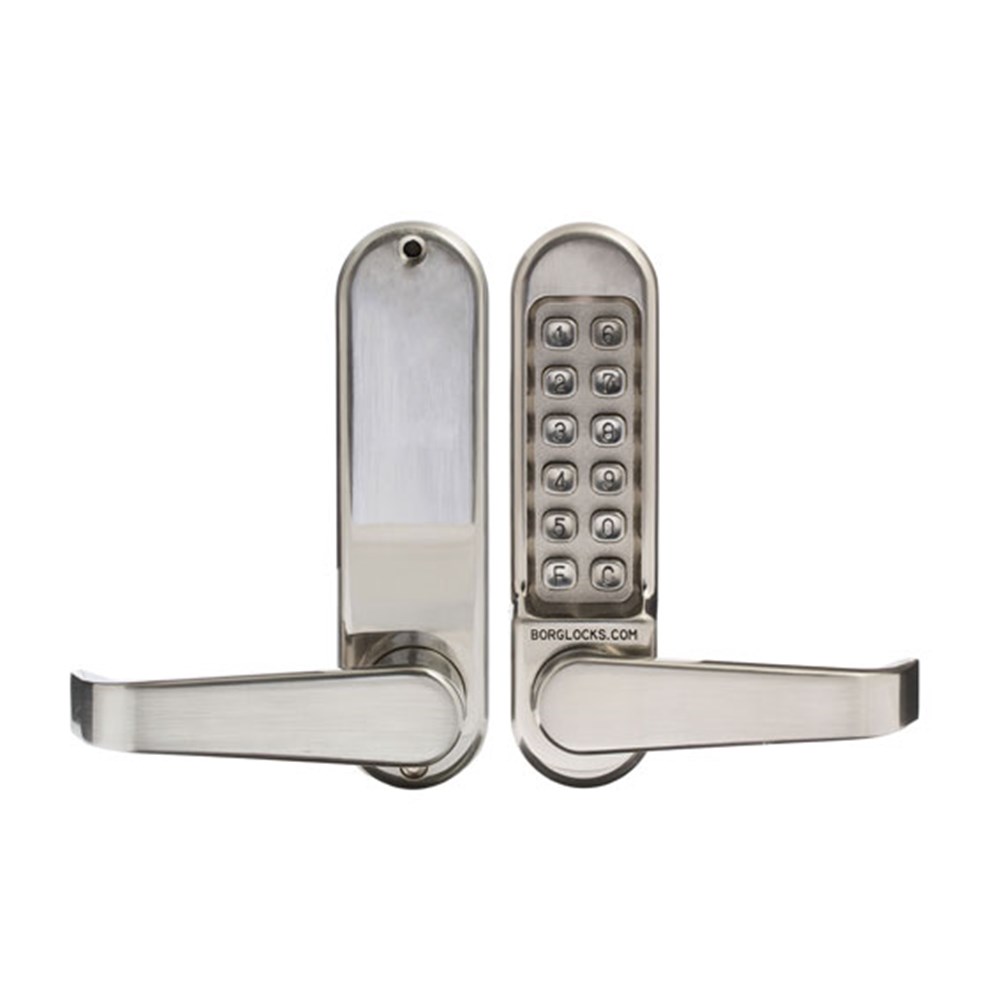

Borg Mechanical Digital Door Lock with DDA Lever Satin Stainless - BL5401SSDDA

Product Code: BL5401SSDDA

Are you a tradesperson?

Get access to our best prices



Description

The BL5401 series with it's disabled access AS1428.1 compliant levers is designed for light to medium duty applications. Its full size lever handles and its large 10 digit keypad enables the 5401 to control access in a wide variety of applications.

Other key features, clutched handle which protects against forced entry and lock damage, optional free passage function, an 8 mm square drive so it can operate a wide range of leading brands of lock.

firerated-icon BCA AS1428.1 -2009 compliant leverset.

firerated-icon Successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets.

information-icon BL5000 series without passage function, with F tumbler replaced by a coded or non-coded tumbler - number of combinations = 2048
BL5000 series with passage function - number of combinations = 1024

  • Fully mechanical digital lock.
  • Disabled access AS1428.1 compliant clutching lever.
  • 60 mm heavy duty tubular latch.
  • 12 mm bolt projection.
  • Optional passage function (if required).
  • Large indented buttons for ease of use.
  • Fully reversible.
  • Easy code change procedure.
  • Suits doors from 35-54 mm thick.
  • Up to 2048 codes to choose from.
  • Designed for light to medium usage areas
    Not suitable for use in high traffic commercial areas.
  • Suitable for internal use.
  • Fire rated.
  • Finished in stainless steel.
Technical Specifications
Brand BORG
Accepts Single PIN Code Only Yes
AS1428.1 Compliant Lever (AS1428.1CO) Yes
Finish Stainless steel
Has Holdback No
Has Key Override No
Has Levers On Both Sides Yes
Has Passage Function (DIGITAL11) Yes
Mechanical Digital Lock Yes
On-door Code Change No
Suits Door Thickness 35 mm to 54 mm
Backset 60 mm
Fire Rated Yes
