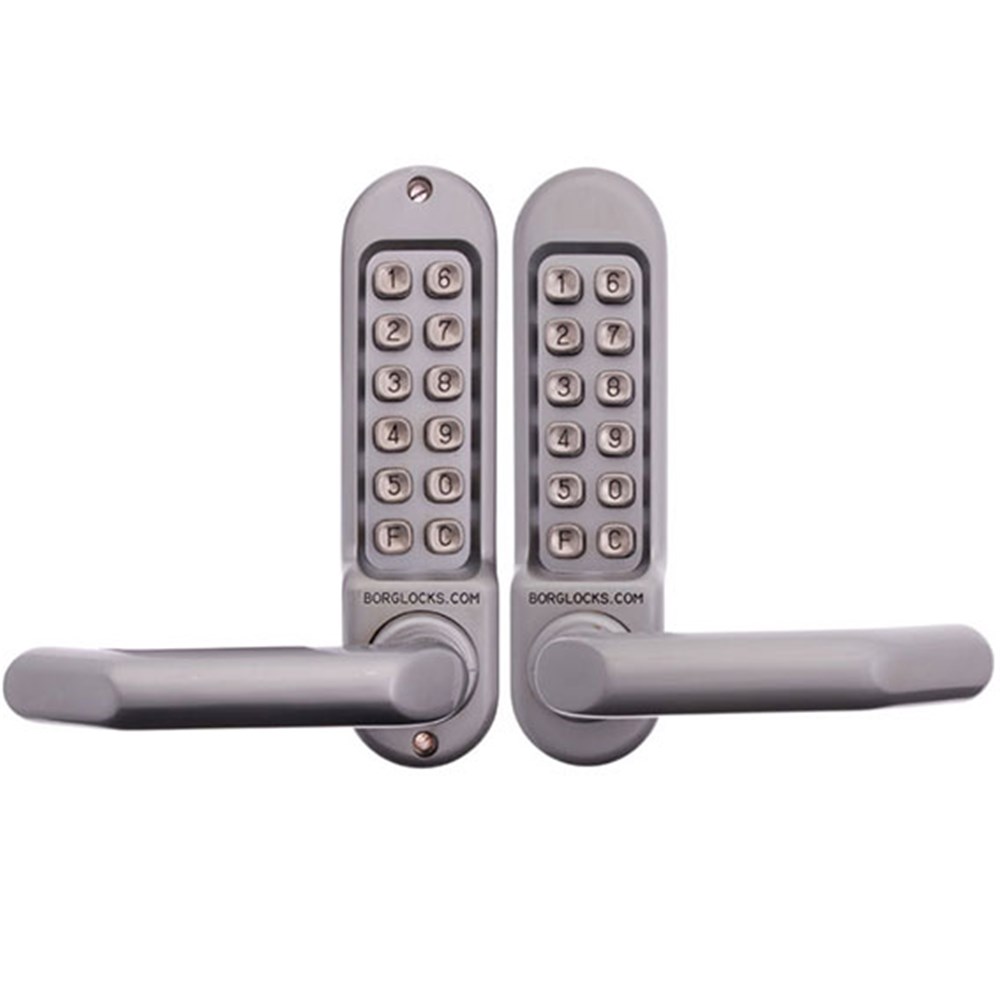

Borg Mechanical Digital Door Lock with Lever Back to Back Keypads and 60mm Backset Euro Mortise Lock Satin Chrome - BL5050SC

Product Code: BL5050SC

Are you a tradesperson?

Get access to our best prices



Description

The BL5000 series are designed for light to medium duty applications. Its full size lever handles with rubber insert for soft grip combined with its large 10 digit keypads enables the 5000 to control access in a wide variety of applications.

Other key features clutched handle which protects against forced entry and lock damage, optional free passage function, an 8 mm square drive so it can operate a wide range of leading brands of lock.

The euro style mortice lock allows for code lockout function to secure the door out of hours.

information-icon BL5000 series without passage function, with F tumbler replaced by a coded or non-coded tumbler - number of combinations = 2048
BL5000 series with passage function - number of combinations = 1024

  • Fully mechanical digital mortice lock.
  • Back to back keypads.

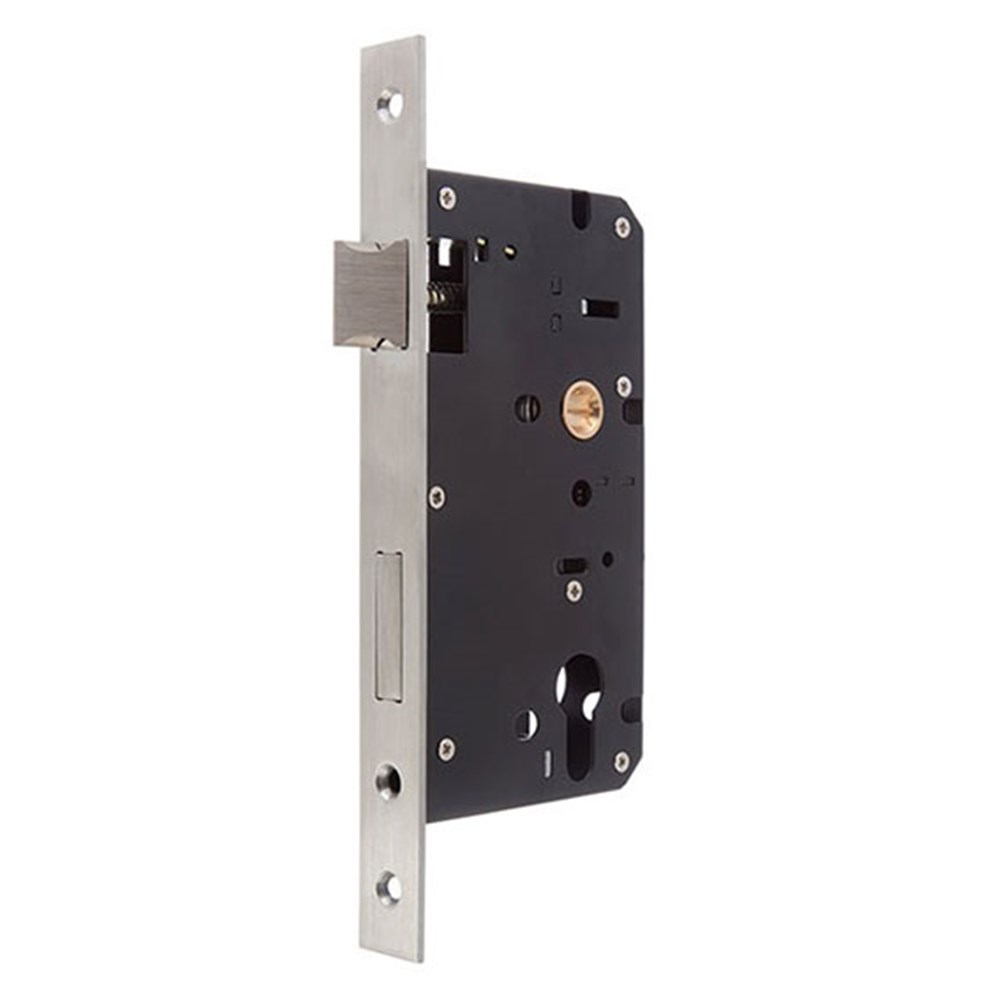

  • Includes 60 mm backset euro style mortice lock.
  • 22 mm double bolt throw.
  • Key lock-out (cylinder not included).
  • Includes 2 x euro escutcheons.
  • Full size lever handles with soft grip rubber insert.
  • Clutching lever protection.
  • Optional passage function per side (if required).
  • Large keypad with indented buttons.
  • Fully reversible.
  • Easy code change procedure.
  • Suits doors from 35-54 mm thick.
  • Up to 2048 codes to choose from.
  • Designed for light to medium usage areas
    Not suitable for use in high traffic commercial areas.
  • Suitable for internal use.
  • Finished in satin chrome.
Technical Specifications
Brand BORG
Accepts Single PIN Code Only Yes
Finish Satin Chrome
Has Back To Back Code Pads Yes
Has Holdback No
Has Key Override Yes
Has Levers On Both Sides Yes
Has Passage Function (DIGITAL11) Yes
Mechanical Digital Lock Yes
On-door Code Change No
Suits Door Thickness 35 mm to 54 mm
Backset 60 mm
