Neptune Touchless Exit Buttons

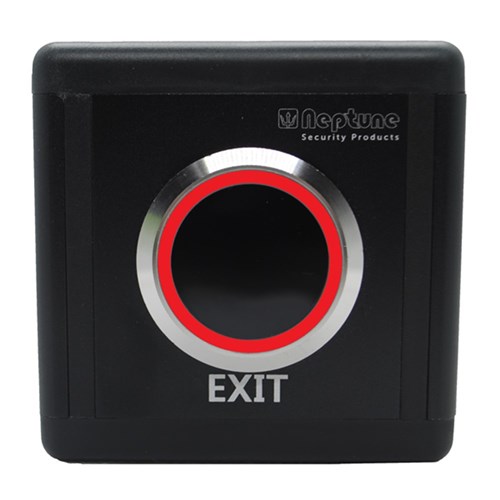

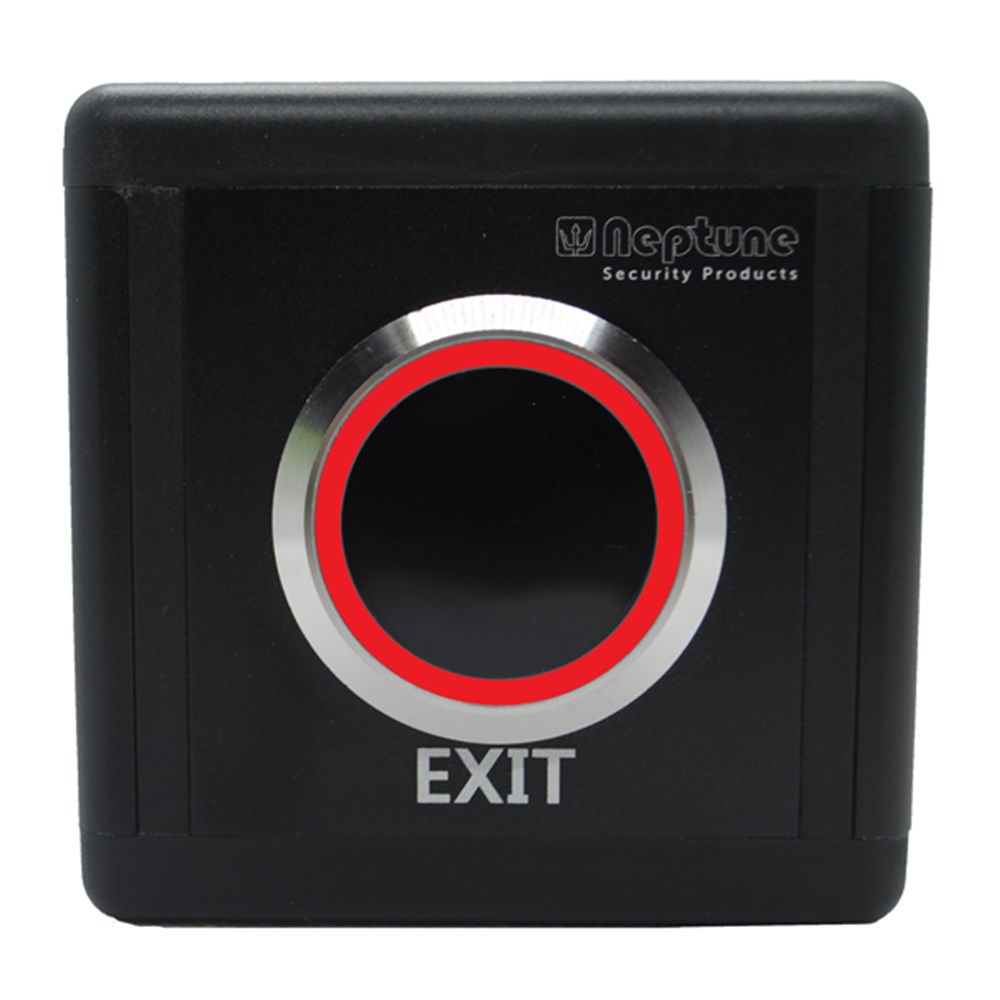

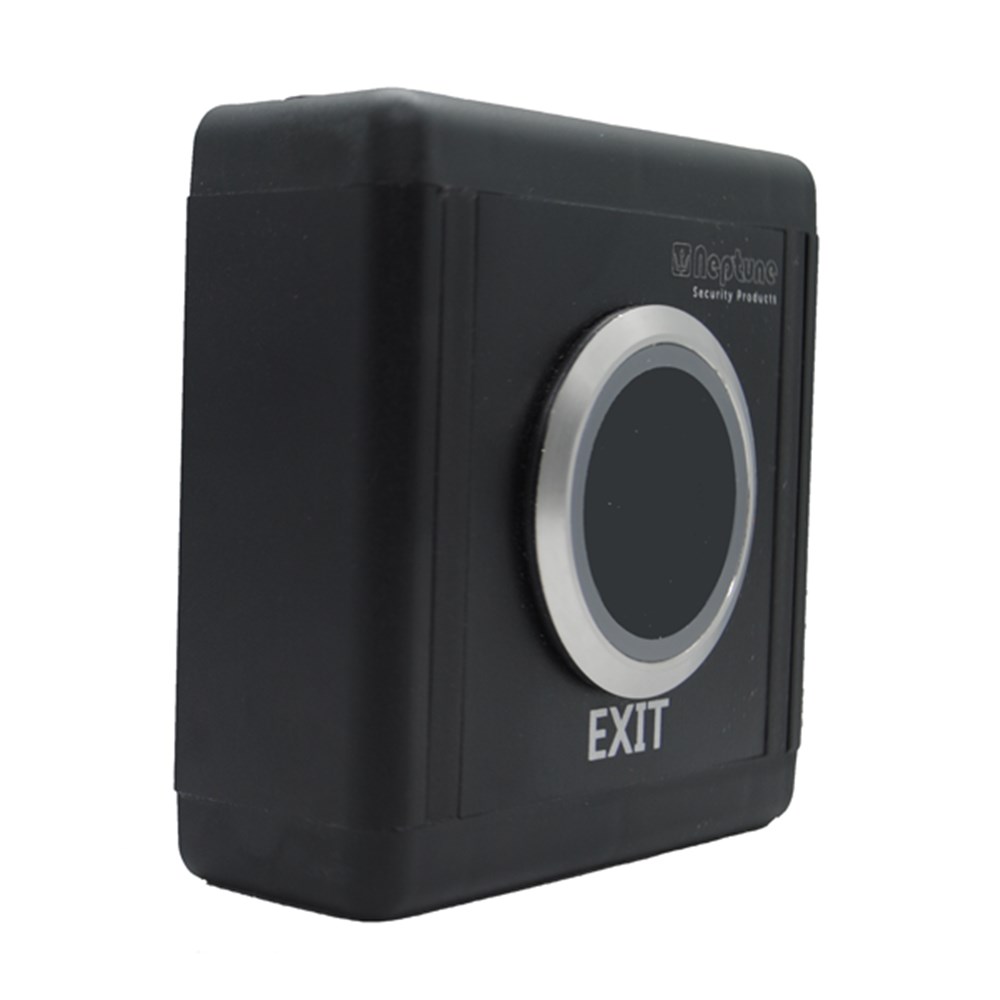

NEPTUNE INFRARED TOUCHLESS EXIT BUTTON IN SQUARE CASE, IP65

Product Code: NEITB98W

Are you a tradesperson?

Get access to our best prices



Description

Neptune IP65 touchless exit button in Square Case with IR sensor, LED indicator, Range Adjustment, Open Delay, Toggle.

  • Sealing protection Infrared Button: IP65.
  • Output loading: 1A@DC30V(Max).
  • Power: 12-24VDC.
  • Current Consumption: Maximum current 45mA@24VDC
  • Output contact: NO/NC/COM.
  • Output State: Trigger state (0.5~30sec) or toggle mode output
  • Life Time: Infrared sensor:100,000 hours / Relay mechanical lifespan:1,000,000.
  • Detection range: 4 – 15cm (adjustable).

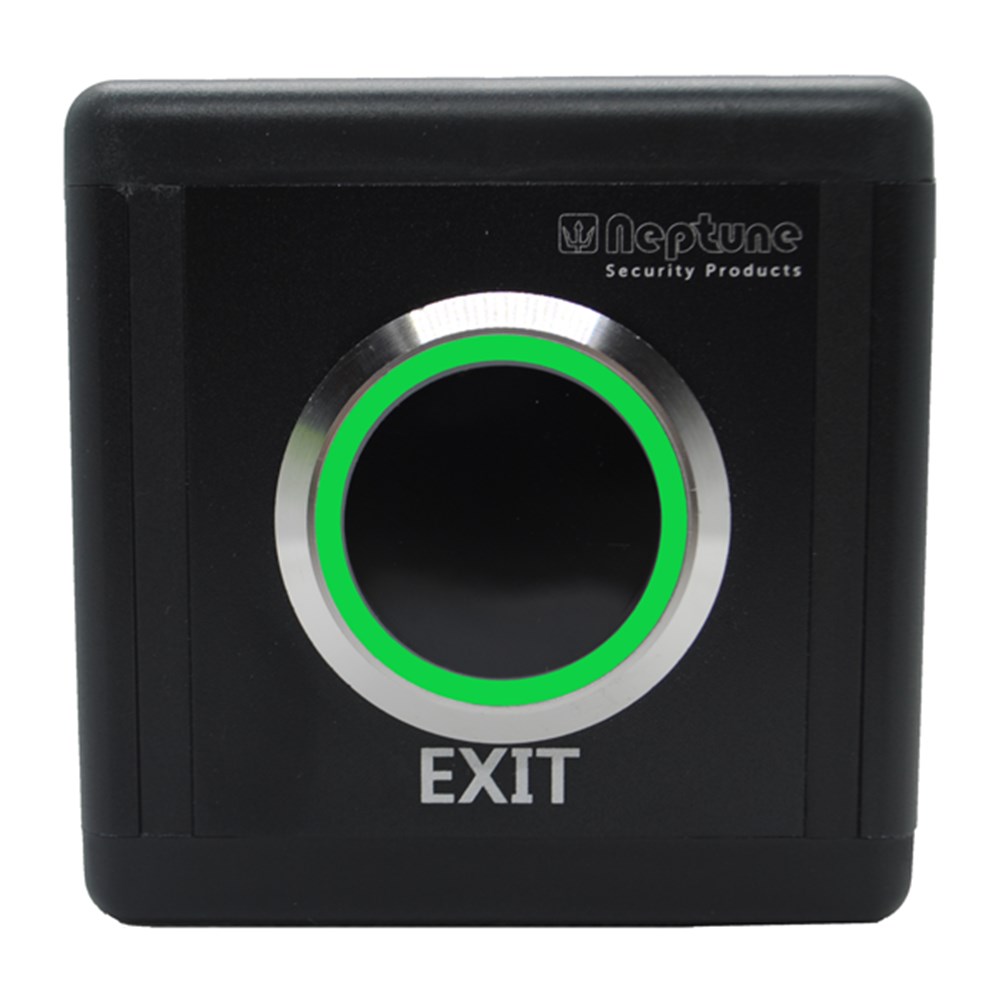

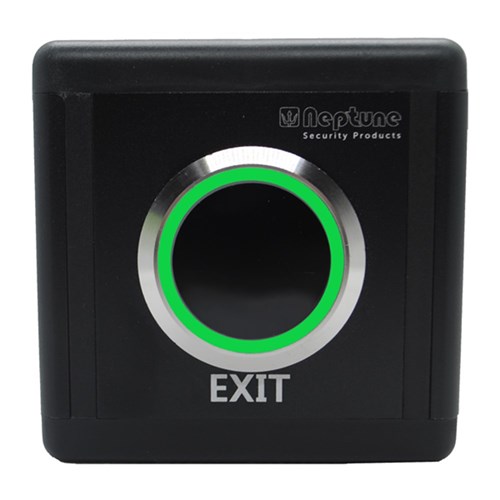

  • LED indicator: Default: Red LED Indicator (Standby), Green LED Indicator (Action)
                                                 LED colour can be reversed using Jumper.
  • Case: Stainless Steel / PC / Aluminium Alloy.
  • Operating temp: -10℃~ 70℃.
  • Button Diameter: 38 mm.
  • Dimensions: 80 (L) x 80 (W) x 28 mm (D).
  • Weight: 202g.
Technical Specifications
Brand NEPTUNE
Finish Black
IP Rating IP65
Current Rating 1 A at 30 Vdc
LED Indicator Yes
Momentary Yes
Depth in mm 28
Overall Length in mm 80
Width in mm 80
Text or Symbol on Plate EXIT
Touch or Touchless Operation Touchless
