1 Door Kits

CS Technologies ACE Wiegand Single Door Access Controller Kit with HID Signo 20 Series Seos Reader and 10 HID Seos Cards

Product Code: ACECARDKIT

Are you a tradesperson?

Get access to our best prices



This product is a special order (BTO) and is not returnable.
Description

The CS Technologies ACE Wiegand access controller is a single door access controller which provides high security and easy programming.

warning-iconThis product is made to order and must be ordered in advance.

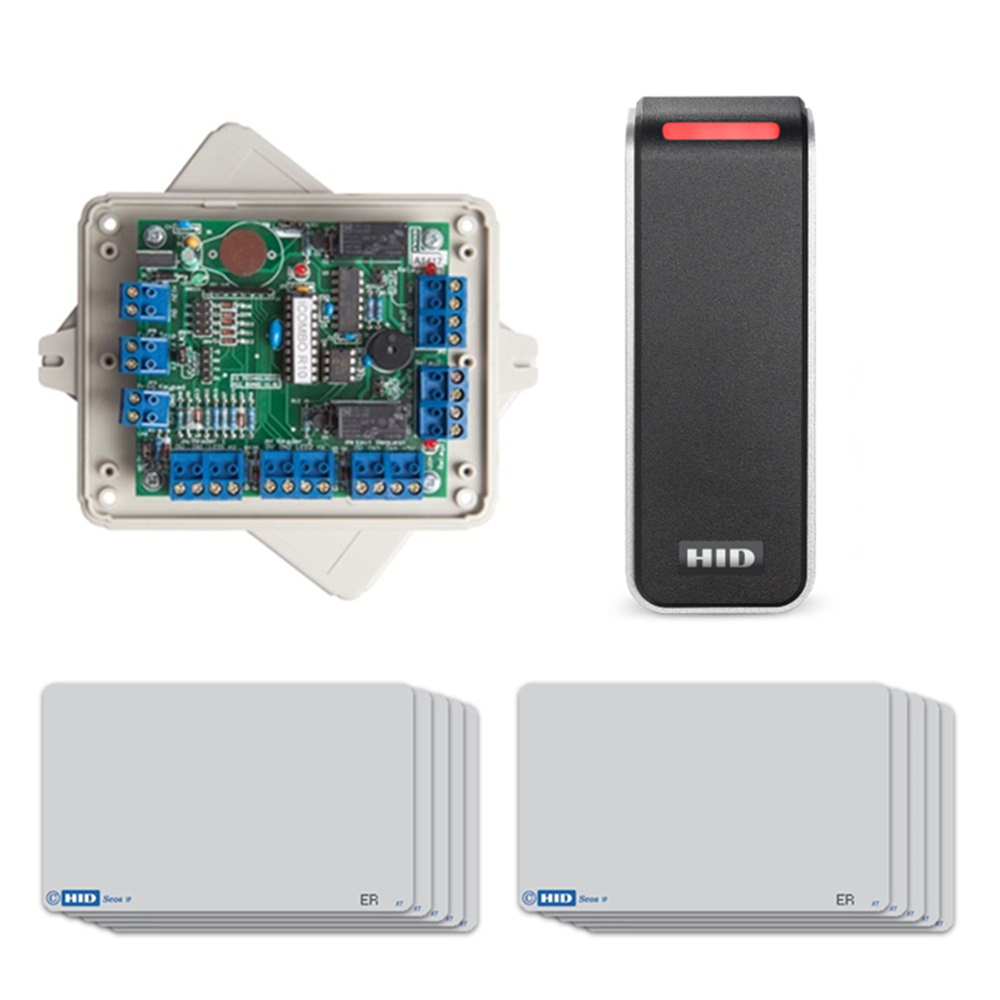

Kit includes.

  • 1 x CS ACE Wiegand single door standalone controller (CS4890).
  • 1 x HID Signo Seos 20 Series Reader (20NKS0100001H).
  • 10 x HID SEOS cards (5006VGGNN).

Kits are supplied with 10 pre-encoded cards.

Additional cards (5006VGGNN) or fobs (5266VNNN) can be purchased separately.

CS ACE Wiegand standalone controller specifications:

  • Supports 26bit Wiegand readers.
  • 4000 user card capacity.
  • Cards must all have the same site code (0 to 255) and be numbered consecutively (e.g. 1-4000).
  • Pre-programmed and ready to install.
  • Optional programming keypad sold separately (NPEPSK2).
  • Egress - Exit request button input.
  • Valid card triggers two relays.
  • Each relay has a programmable release time.
  • No controller history, time, or time zone features.
Technical Specifications
Brand CS TECHNOLOGIES
Current 150 mA
Working Voltage 12 Vdc
Amount of User Codes 4000
Number Of Doors Controllable 1
Type Of Board/Controller Controller Kit with 1 HID Reader
